Versatile four-track audio recorder for cinema, music, podcasting, and any other application. Easy-to-use compact design with a high-performance feature set and versatile audio I/O, all to produce professional content.



FEATURES

  • Portable recorder for musicians, DSLR filmmakers, podcasting, and field recording
  • Dual condenser microphones for A/B or XY stereo recording
  • XLR/TRS combo inputs (with phantom power) for your own mics or instruments
  • Record up to 4 channels simultaneously
  • 2-in/2-out USB audio interface for Mac and PC
  • MS Decoding for Mid-side recording techniques
  • Compatible with RC-3F foot switch and RC-10 wired remote (sold separately)
  • Dictation mode and Auto Recording mode simplify certain recording tasks
  • One-touch user interface with Quick Menu button for most functions
  • Up to 17.5 hours of operation from 2 x AA batteries
  • Supports high-capacity microSDXC card media for hours of recording time

Spec Description

Recording Media
SD card (64MB to 2GB), SDHC card (4GB to 32GB), SDXC card (up to 128GB)
File System
FAT16/32, exFAT
Recording File Format

WAV / BWF

Sampling Frequency
44.1k / 48k / 96k Hz
Bit-depth
16 / 24-bit
MP3

Sampling Frequency
44.1k / 48k Hz
Recording Bit-rate
32k / 64k / 96k / 128k / 192k / 256k / 320k bps
Playback Bit-rate
32k to 320k bps, VBR, ID3TAG Ver. 2.4
Number of Channels
4-channel (2 Stereo)
Playback speed control
0.5 to 2.0 times (in 0.1 increments) * 44.1k/48kHz only
Built-in Microphone
Unidirectional, Stereo (switchable between A-B and X-Y positions)

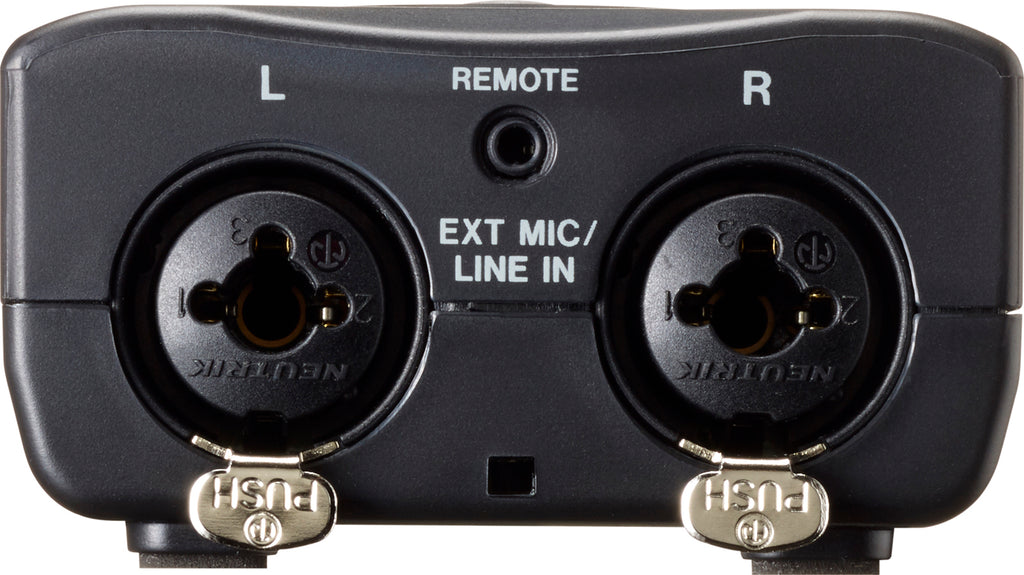

EXT MIC/LINE IN

Connector
XLR/TRS Combo jack (1: GND, 2: HOT, 3: COLD)
Nominal Input Level
-19dBV (MIC) / +4dBu (LINE)
Maximum Input Level
-3dBV (MIC) / +20dBu (LINE)
Input Impedance
2.2kΩ (MIC) / 10kΩ (LINE)
PHONES/LINE OUT

Connector
1/8" (3.5mm) Stereo Mini jack (Unbalanced)
for LINE connection

Nominal Output Level
-14dBV (10kΩ load)
Maximum Output Level
+2dBV (10kΩ load)
Output Impedance
12Ω
for Headphones connection

Maximum Output Power
20mW + 20mW (32Ω load)
USB

Connector
USB Micro B-type
Standard
USB2.0 HIGH SPEED
Features
Mass Storage Class
Audio Interface (44.1kHz, 48kHz)
Built-in Speaker
0.3W, Mono
Low-cut Filter
40 / 80 / 120Hz
Chromatic Tuner
C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Effector
6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)
Tripod attachment screw-hole
1/4" Tripod attachment screw-hole
Power
3 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter)
Power Consumption
1.7 W (Max)
Battery Operation Time
(Recording)

Alkaline (EVOLTA)
approx. 18 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Ni-MH (eneloop)
approx. 16 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Dimensions (W×H×D)
2.75" × 6.1" × 1.37" / 70 × 155 × 35 mm
Weight
8.3 oz. / 213 g

Audio Performance

Frequency Response

Fs 44.1kHz
20Hz to 20kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
Fs 48kHz
20Hz to 22kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
Fs 96kHz
20Hz to 40kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
Total Harmonic Distortion
0.01% or less (Fs 44.1k/48k/96kHz, EXT IN to LINE OUT, JEITA)
Signal-to-Noise Ratio
94 dB or higher (Fs 44.1k/48k/96kHz, EXT IN to LINE OUT, JEITA)

Computer System Requirements

Windows
Compatible computers
Windows computer with a USB 2.0 (or higher)
Mac
Compatible computers
Mac with a USB 2.0 (or higher)
* Verified with Intel and Apple Silicon (M1 and M2) hardware
