Portacapture X8 8-Channel 32-Bit Float Portable Audio Field Recorder
TASCAM
Dhs. 2,629.00
Taxes included.
Shipping calculated at checkout.
The TASCAM Portacapture X8 allows you to record wherever your inspiration takes you. From field recording for sound design, to audio for video production, or multi-track and one-take songwriting. The Portacapture X8 combines high-resolution sound quality with intuitive app-like control. 32-bit floating-point recording means you can capture the most dynamic sound sources without worrying about clipping or indistinct audio from quiet sources.
FEATURES:
-

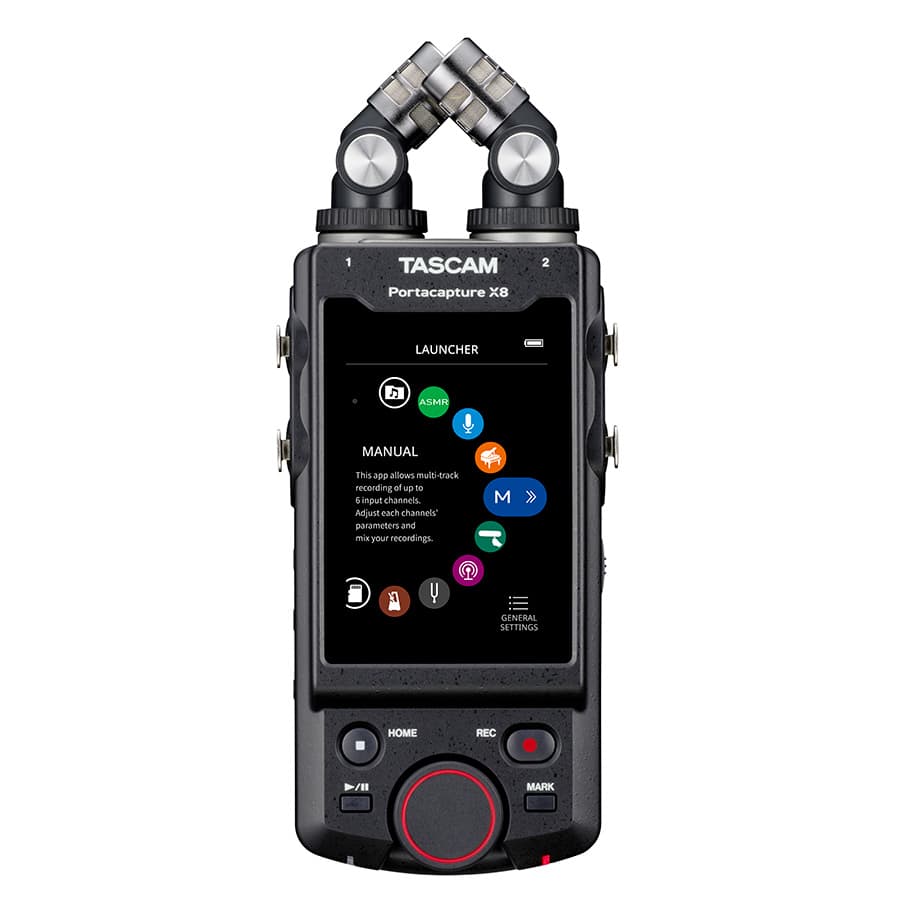

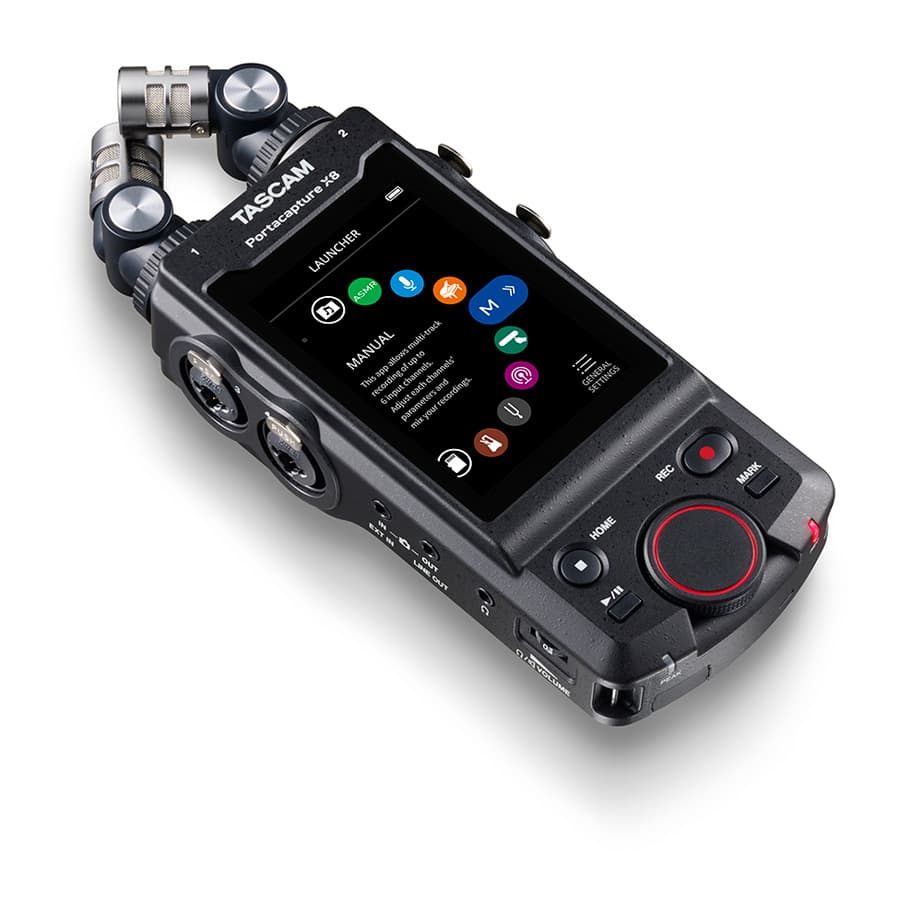

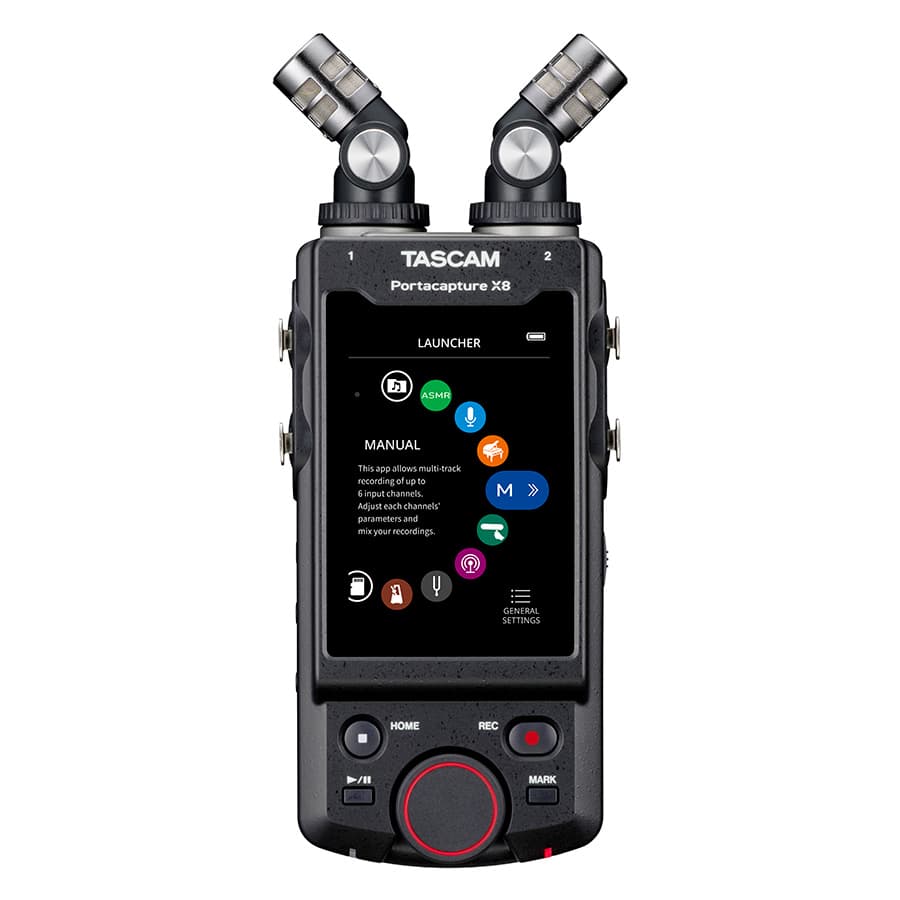

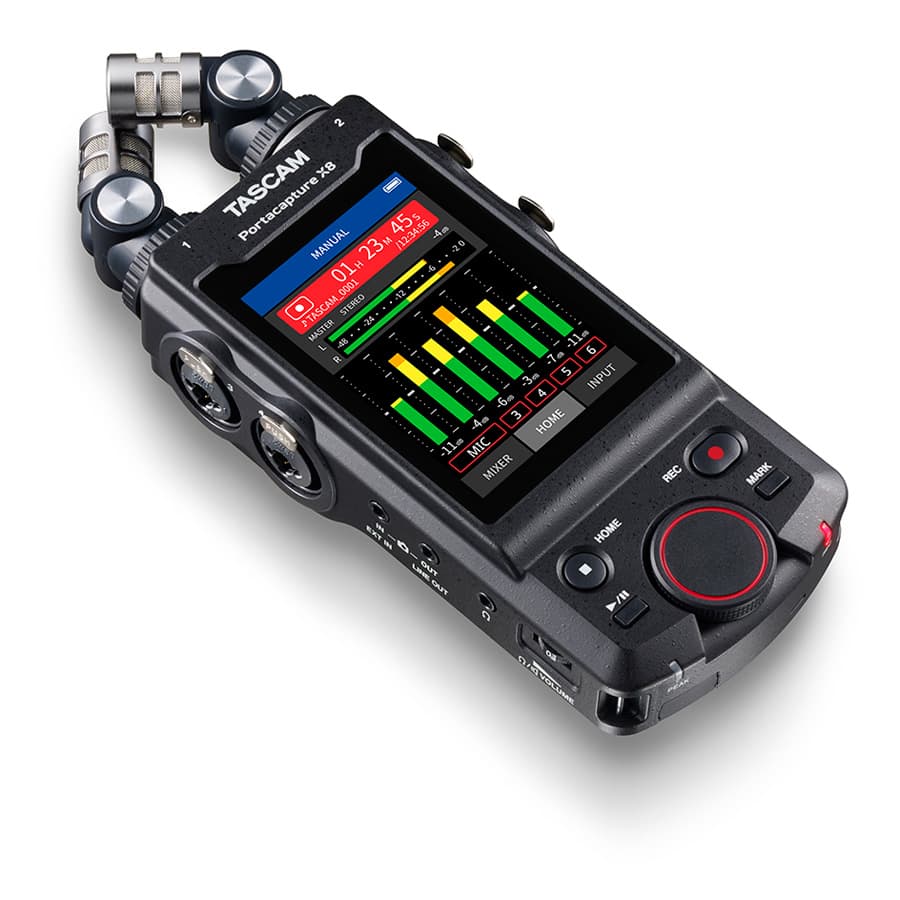

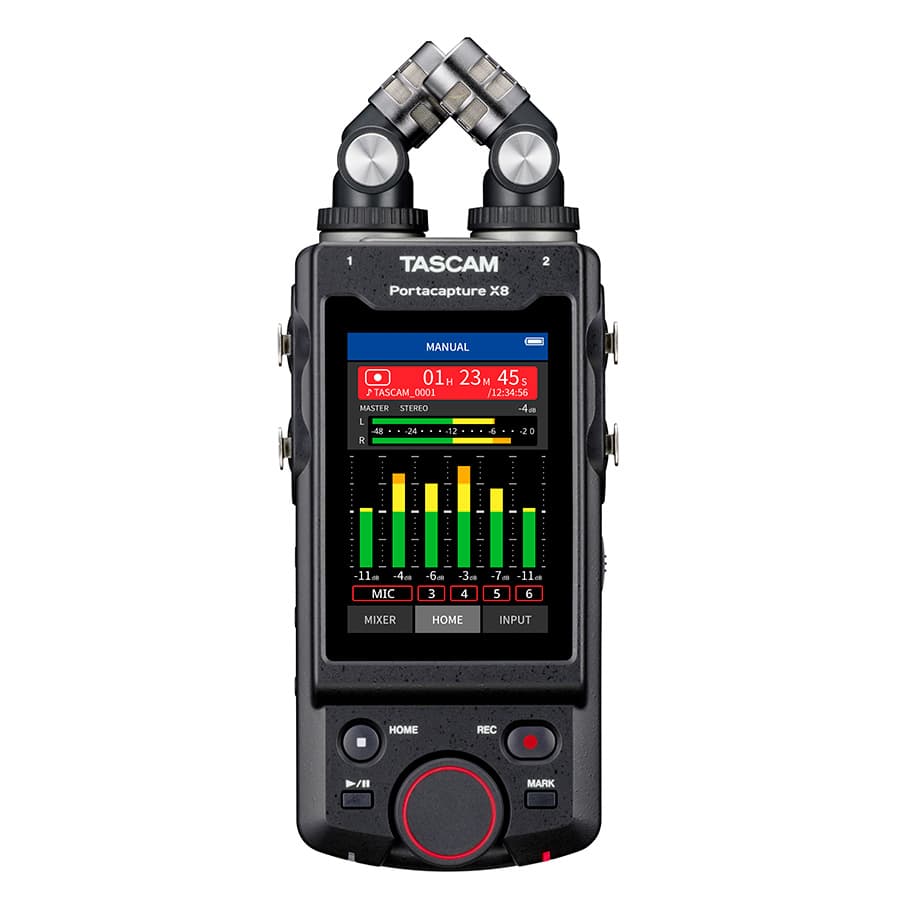

Intuitive Launcher system using a 3.5-inch color touch panel display
-
4 mic/line inputs with individual phantom power accommodate practically any combination of sound sources, from microphones and line-level devices to instruments
-
32-bit floating point recording means you don't need to set input levels before recording, and you won't have to scrap audio that was recorded too loudly or too quietly
-

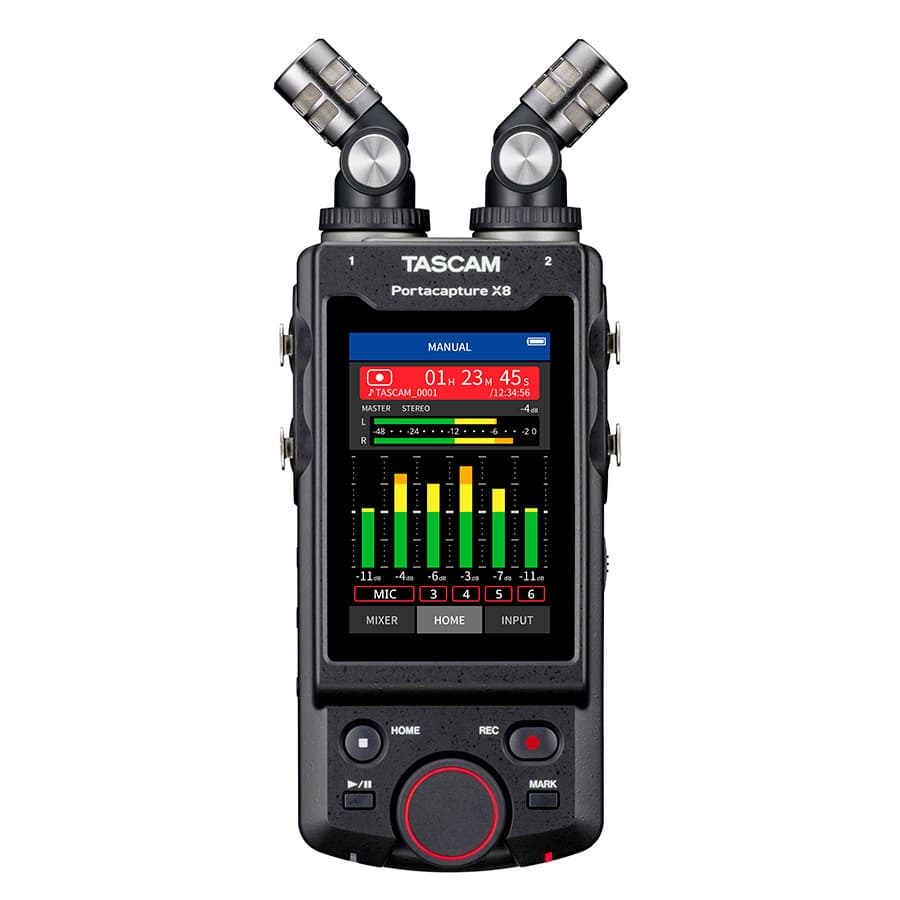

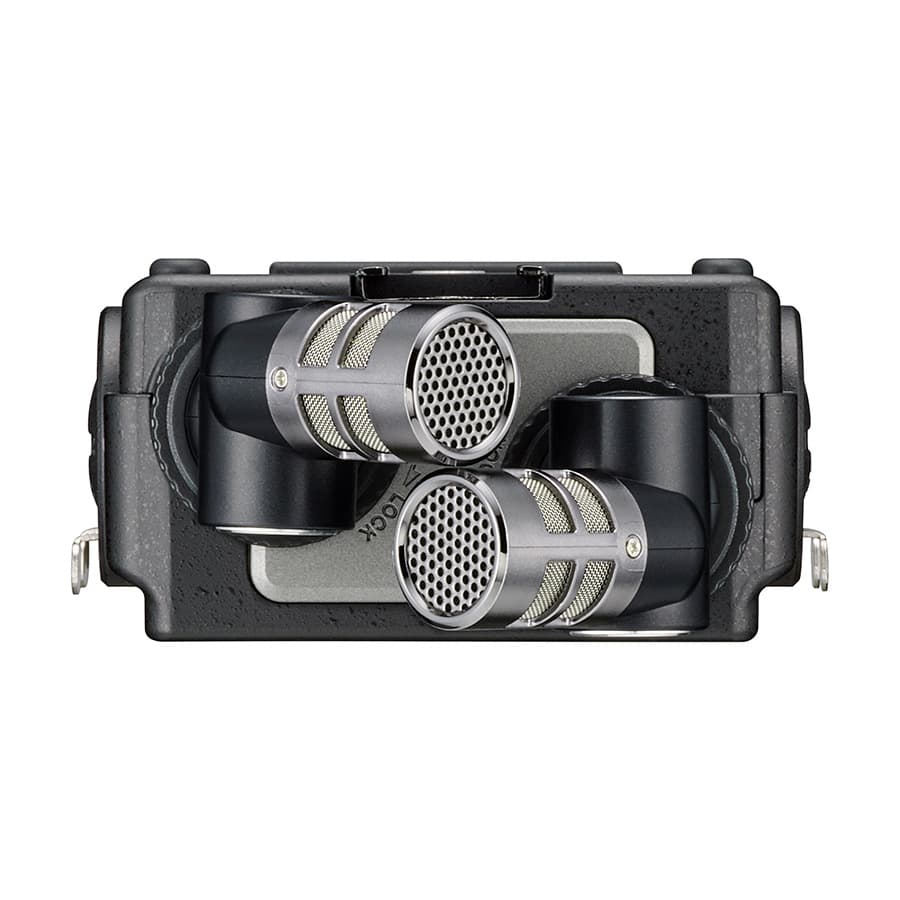

Detachable large-diaphragm condenser mics can be configured for A-B and X-Y stereo recording
-
Driverless 8-in/2-out USB audio interface
-
Record up to 8 tracks simultaneously (6 tracks + 2 mix)
-

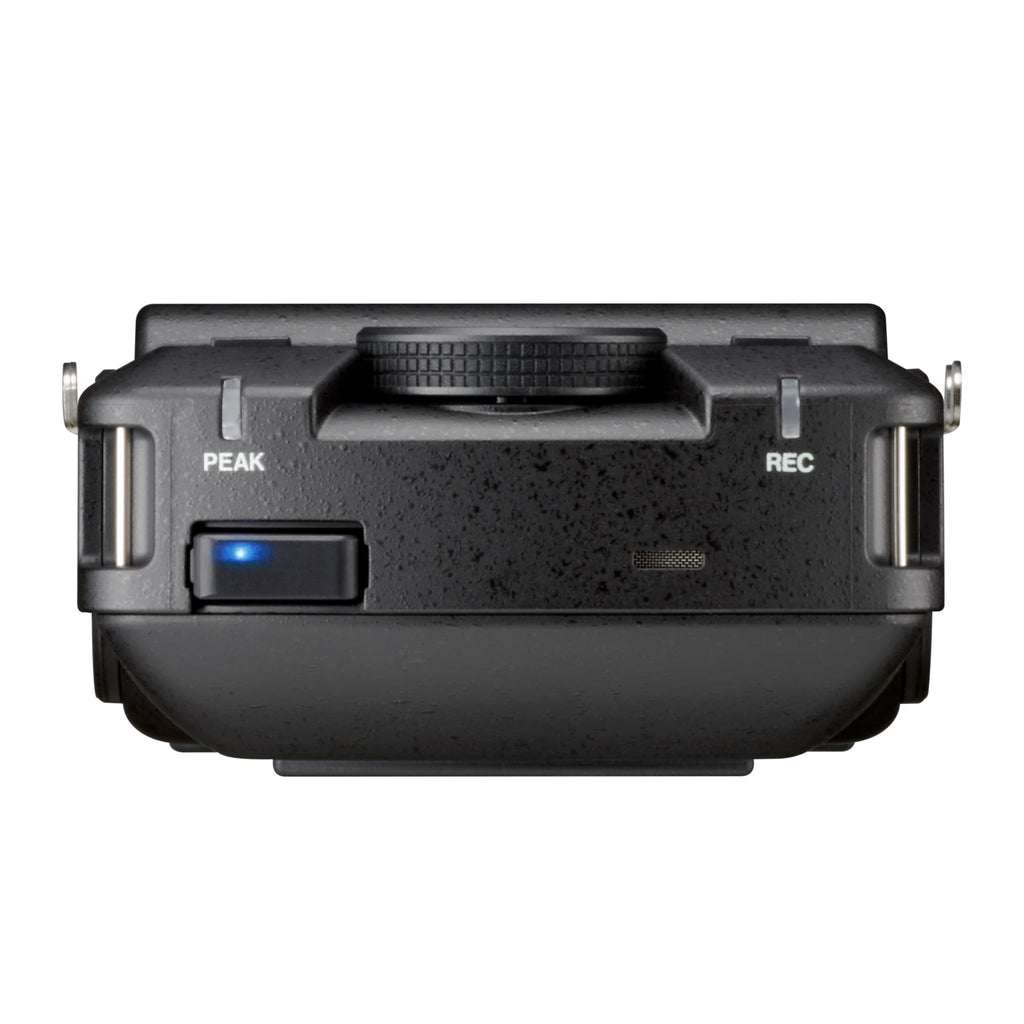

Wireless remote control via Portacapture Control app and optional AK-BT1 Bluetooth adapter
SPECIFICATIONS:
| Recorder specifications | |
| Recording media | microSD cards (64MB - 2GB), microSDHC cards (4GB - 32GB), microSDXC cards (48GB - 512GB) |
| Recording/playback formats | |
| WAV (BWF) | 44.1k/48k/96k/192kHz, 16/24-bit, 32-bit float |
| MP3 | 44.1k/48kHz, 128k/192k/256k/320kbps |
| Number of channels | |
| Input channels | 6 channels maximum |
| Recording tracks | 8 tracks maximum (6 tracks, stereo mix) |
| Analog audio input ratings | |
| Mic inputs (unbalanced) | |
| Input jacks 1-2(support plug-in power) | |
| Connectors | 3.5mm (1/8") Mini TRS jacks |
| Maximum input level | +1dBV |
| Minimum input level | -69.3dBV |
| Input impedance | 85kΩ or higher |

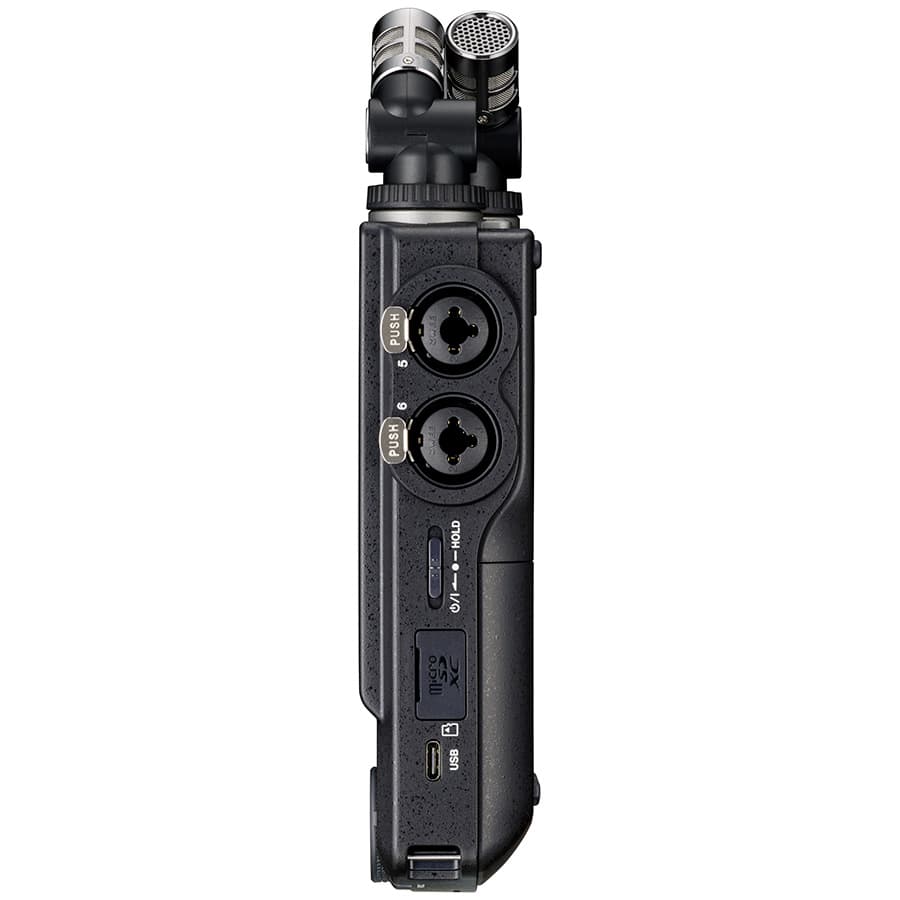

| Mic inputs (balanced) | |
| Input jacks 3-6(input set to "MIC") | |
| Connectors |
XLR-3-31 equivalent(1: GND, 2: HOT, 3: COLD) |
| Maximum input level | +2dBu |
| Minimum input level | -75dBu |
| Input impedance | 2.2kΩ or higher |
| Input jacks 3-6(Input set to "LINE") | |
| Connectors |
XLR-3-31 equivalent(1: GND, 2: HOT, 3: COLD) |
| Nominal input level | +4dBu (GAIN: min) |
| Maximum input level | +24dBu |
| Minimum input level | -53dBu |
| Input impedance | 9kΩ or higher |
| Line input (unbalanced) | |
| EXT IN Jack | |
| Connectors | 1/8" (3.5mm) Stereo Mini jack |
| Nominal input level | -10dBV (GAIN: min) |
| Maximum input level | +10dBV |
| Minimum input level | -48dBV |
| Input impedance | 8.5kΩ or higher |
| Analog audio output | |
| Line output (unbalanced) | |
| LINE OUT jack | |
| Connectors | 1/8" (3.5mm) Stereo Mini jack |
| Nominal output level | -14dBV |
| Maximum output level | +6dBV |
| Output impedance | 200Ω |
| Headphone output | |
| Headphone jack | |
| Connectors | 1/8" (3.5mm) Stereo Mini jack |
| Maximum output | 45mW + 45mW (THD+N 0.1% or less, into 32Ω) |
| Working impedance | 16ohms to 400ohms |
| Built-in speaker | 0.4W (mono) |
| Control input/output ratings | |
| USB port | |
| Connectors | USB Type-C |
| Format | USB2.0 HIGH SPEED mass storage class |
| Bluetooth® device connector | For Bluetooth® adapter (AK-BT1) only |
| Power | 4 AA batteries (Alkaline, Ni-MH, or Lithium-ion) USB bus power from a computer TASCAM PS-P520U AC adapter (sold separately) |
| Power consumption | 7.5W (maximum) |
| Dimensions | 83 (W) × 205.6 (H) × 41.5 (D) mm ※including protrusions |
| Weight | 472g / 381g (with/without batteries) |
| Operating temperature range | 0 - 40°C |
| Included | Included mics × 1 (left/right pair) AA alkaline batteries × 4 Owner's Manual (including warranty) × 1 TASCAM ID registration guide × 1 |
Note: 0dBV=1Vrms, 0dBu=0.775Vrms
