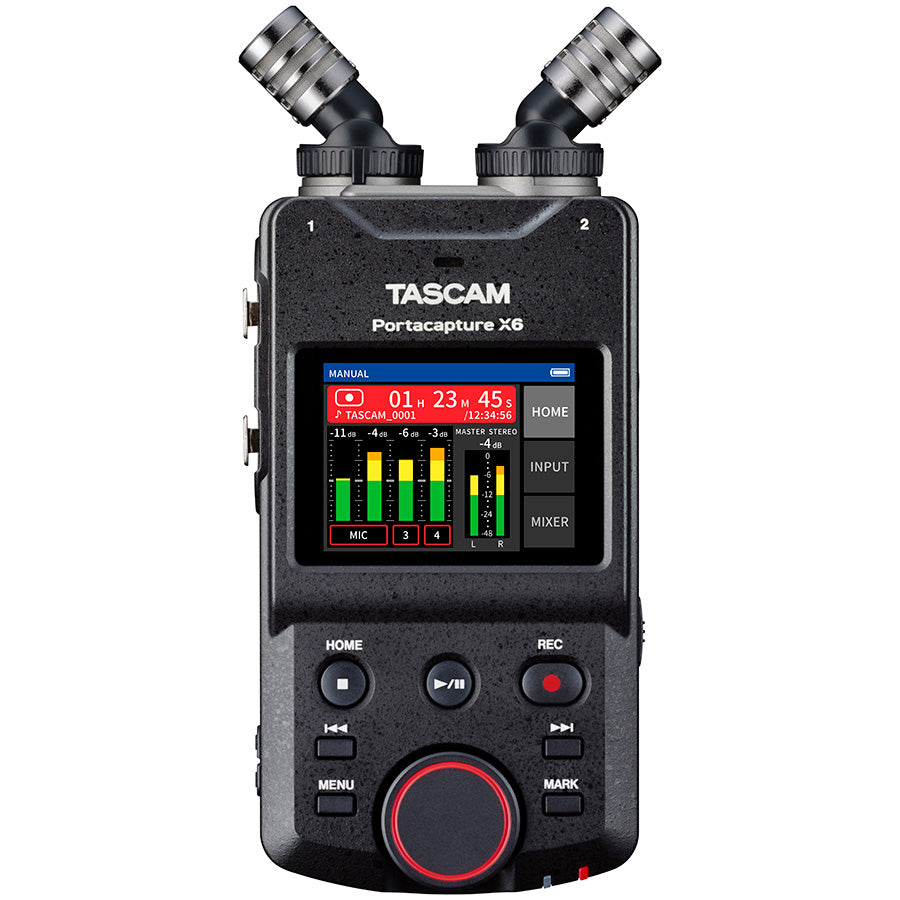

  • Portable field audio recorder with touchscreen, buttons, and dual-capsule microphones

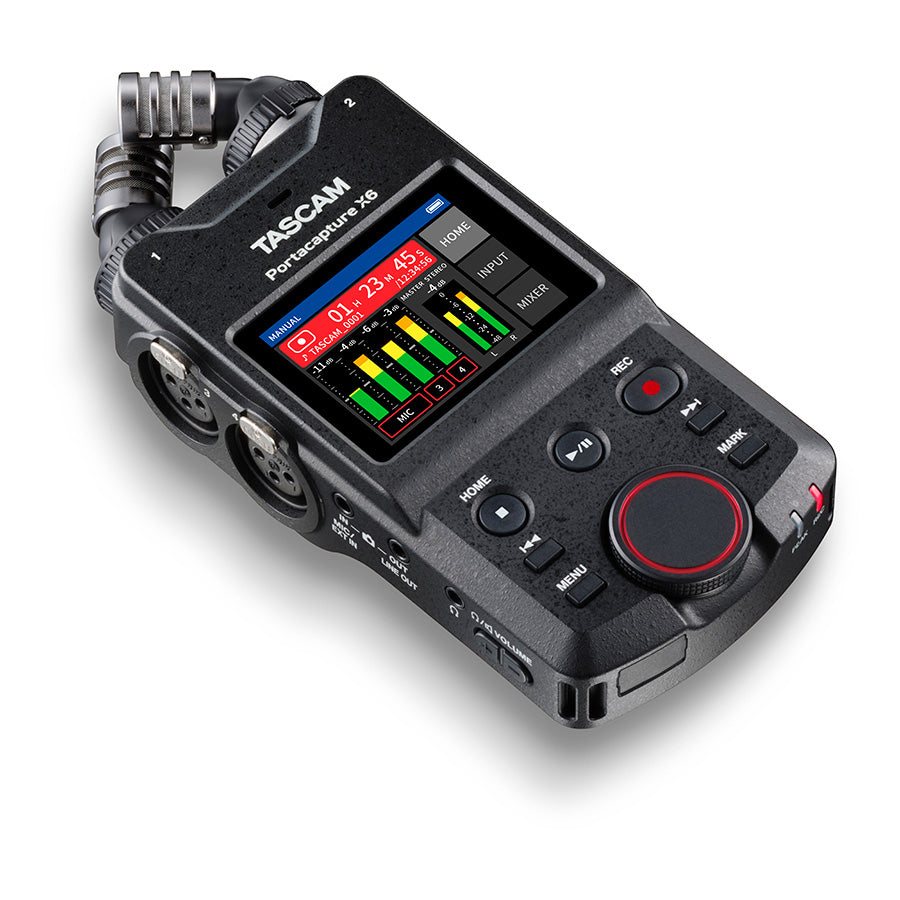

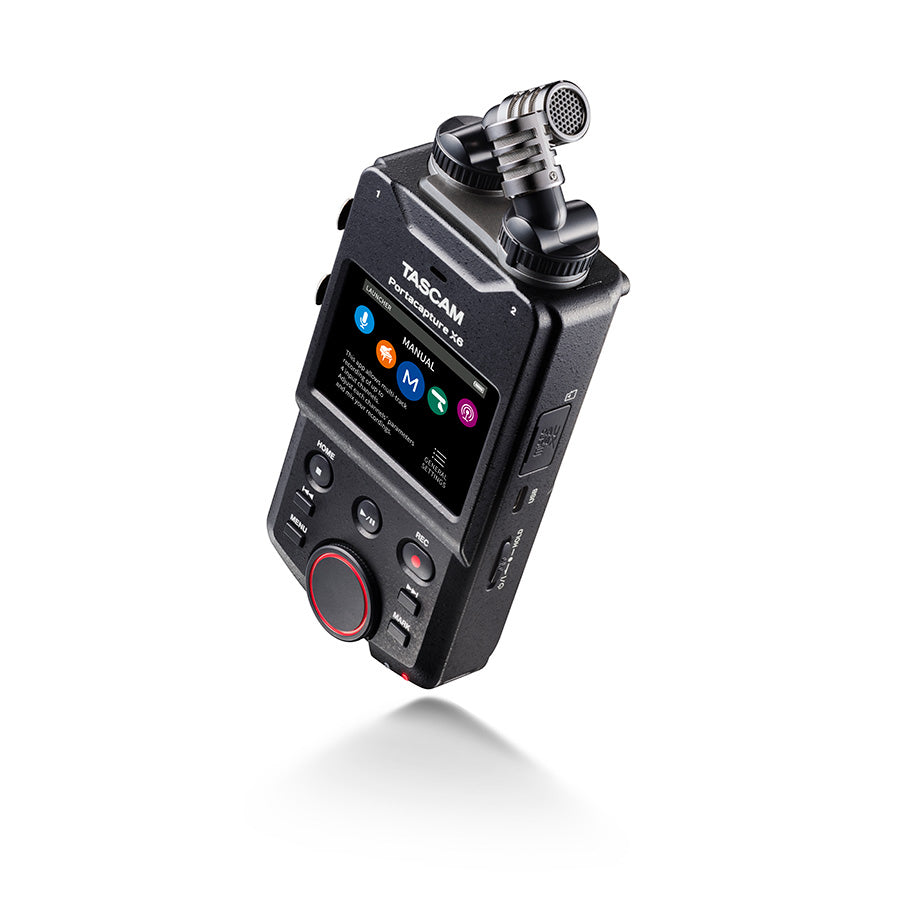

  • Portable field audio recorder with color screen, controls, and dual-capsule microphones

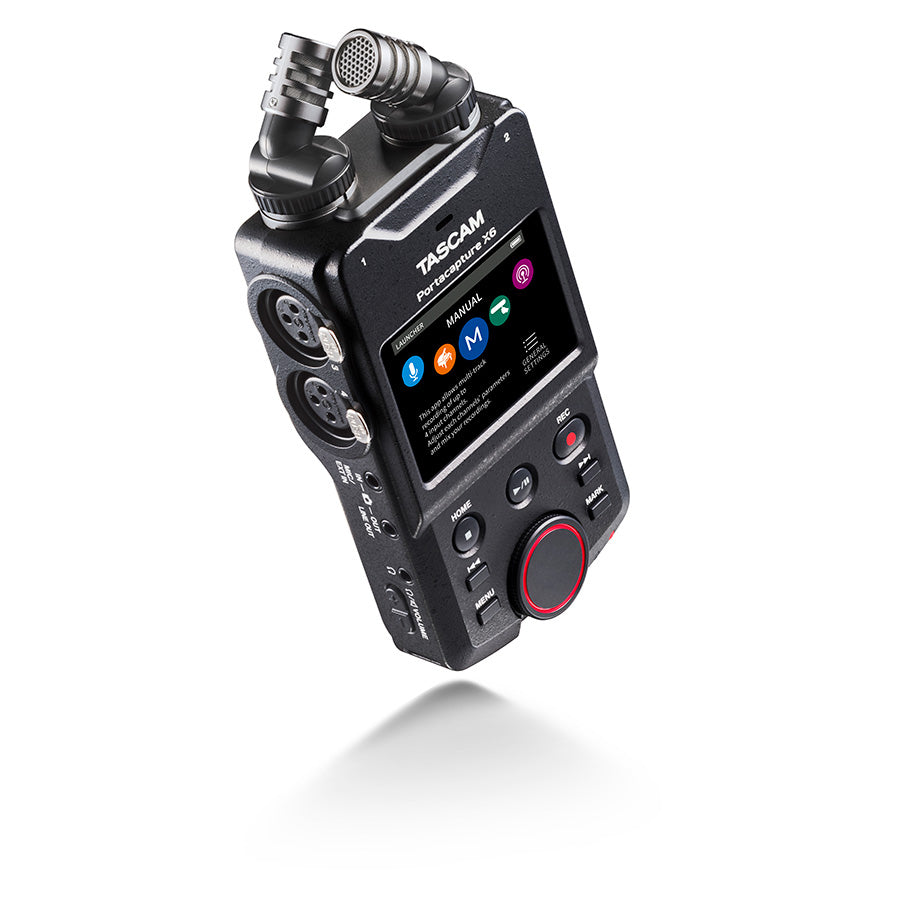

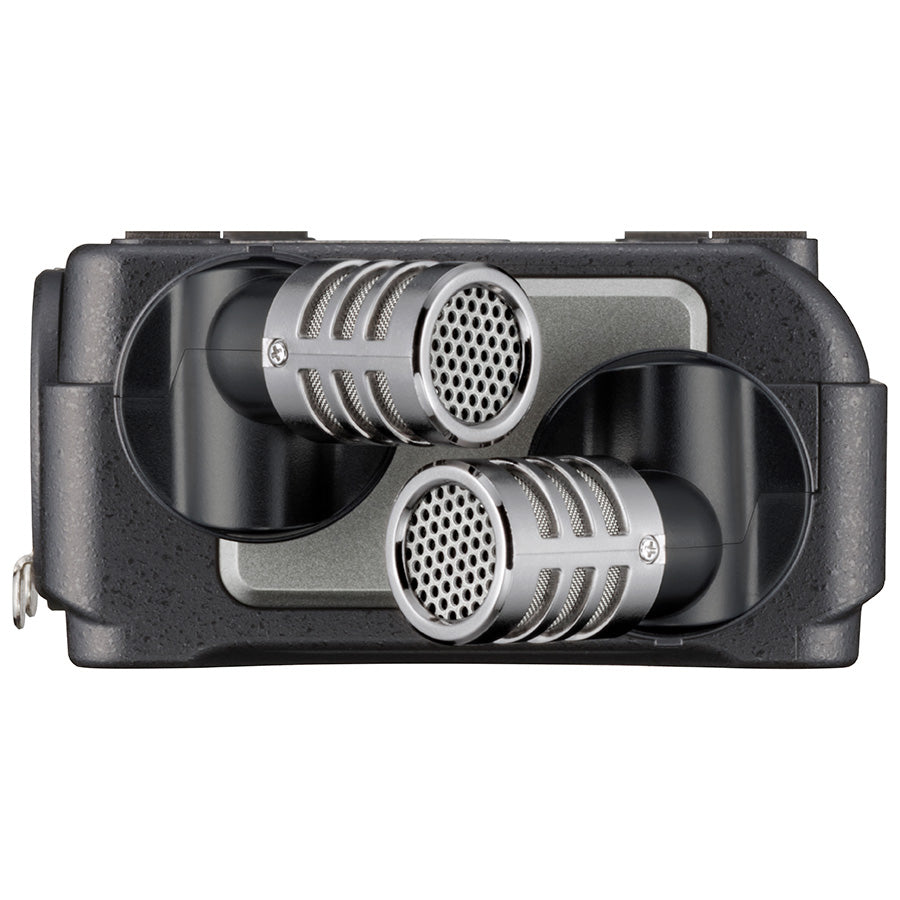

  • Portable field audio recorder with display and knobs, showing microphone capsule tops

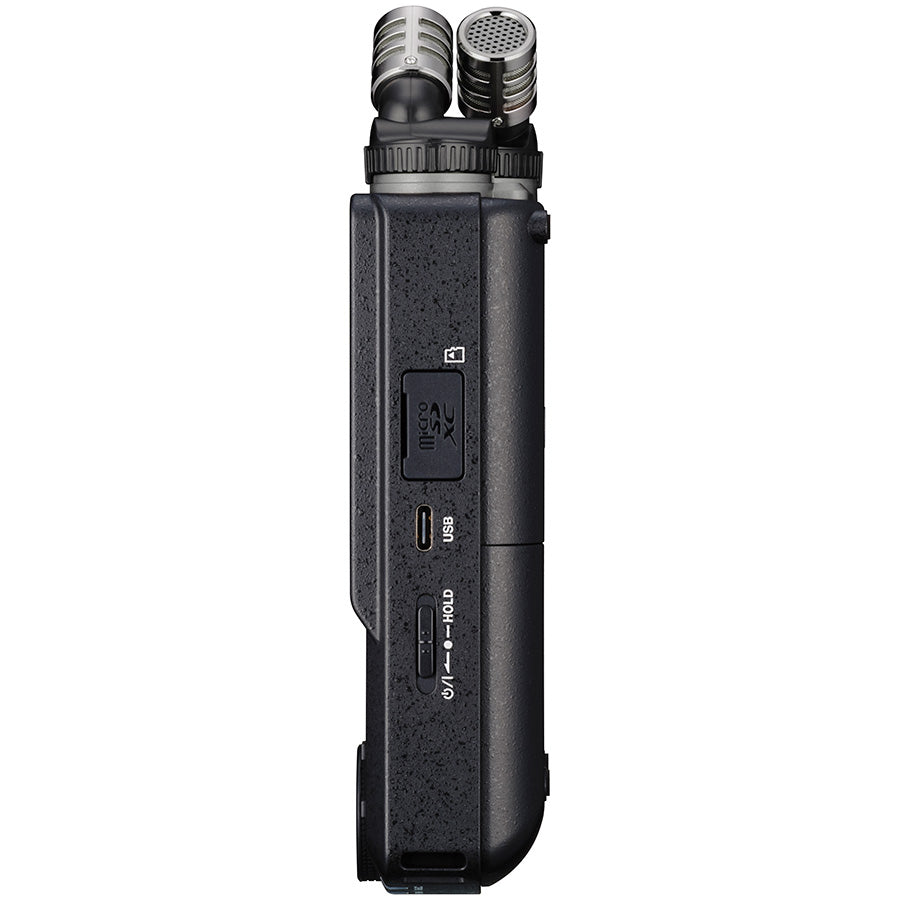

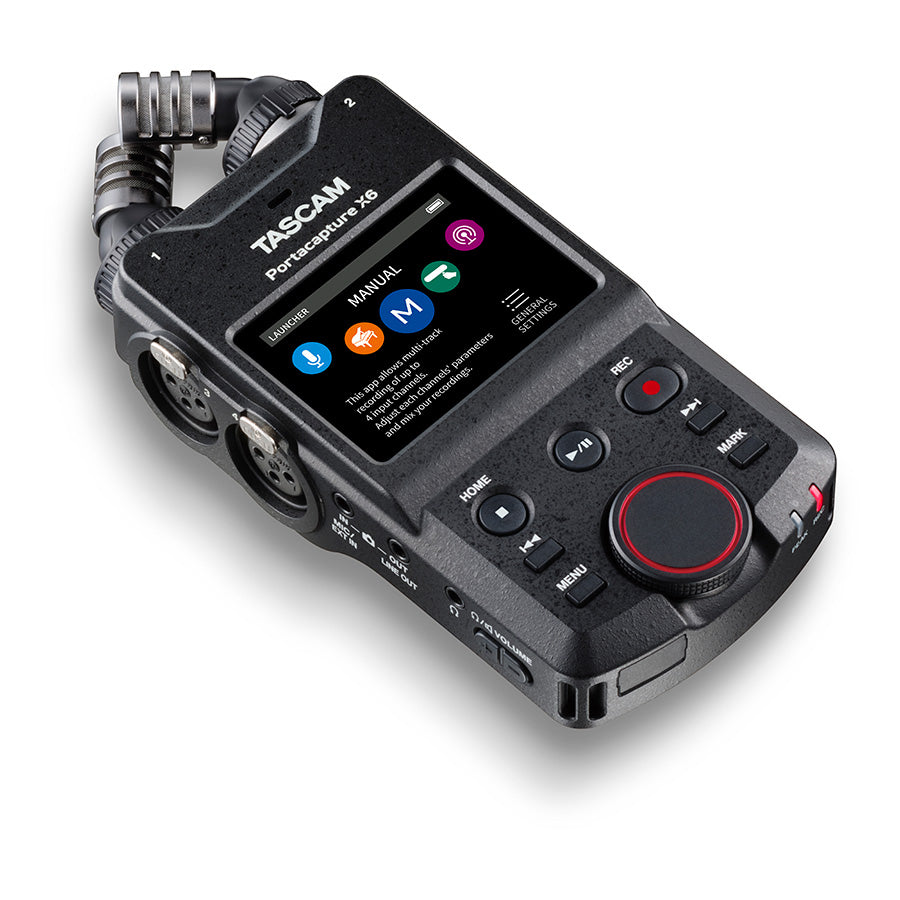

  • Portable field audio recorder with dual microphones and side control panel

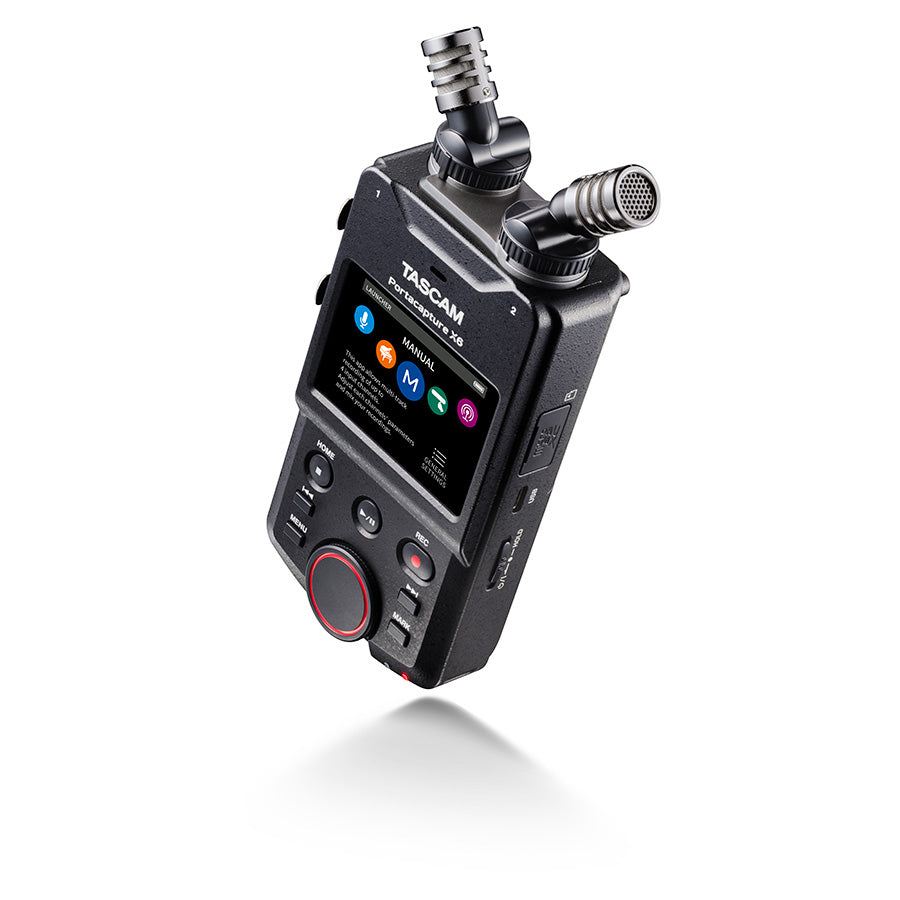

  • Portable field audio recorder with screen, large volume dial, and top microphone capsules

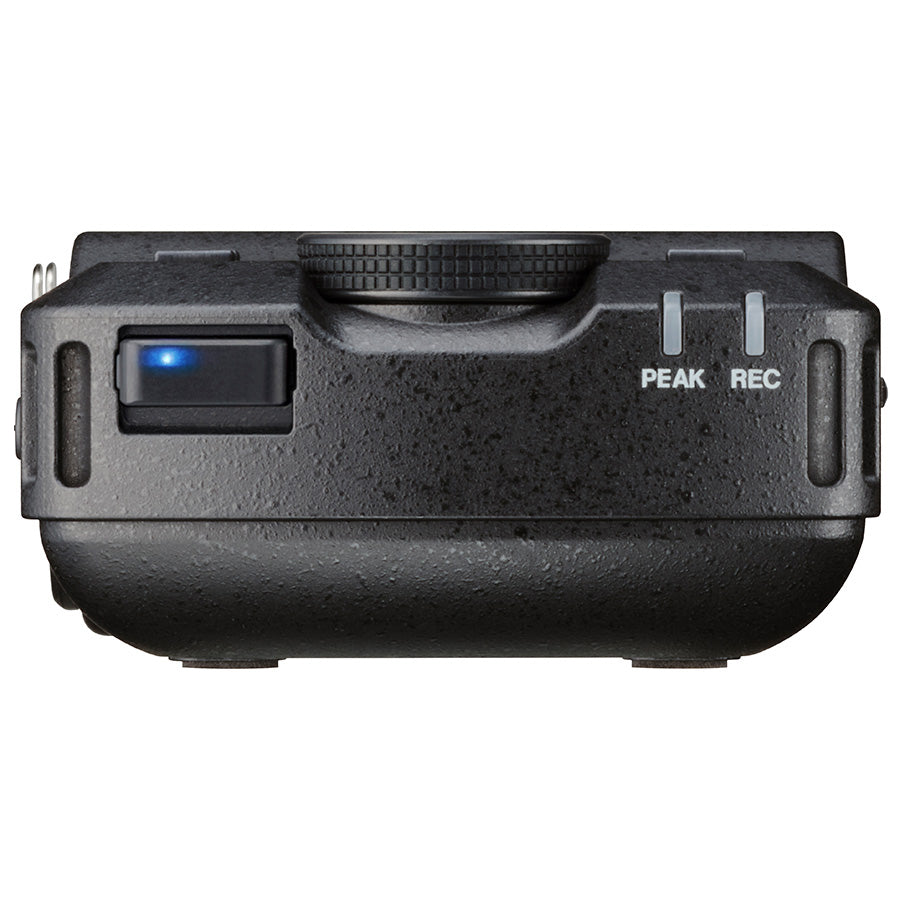

  • Portable field audio recorder back view with PEAK and REC indicators and blue display
  • Portable field audio recorder front view with screen and dual microphone capsules

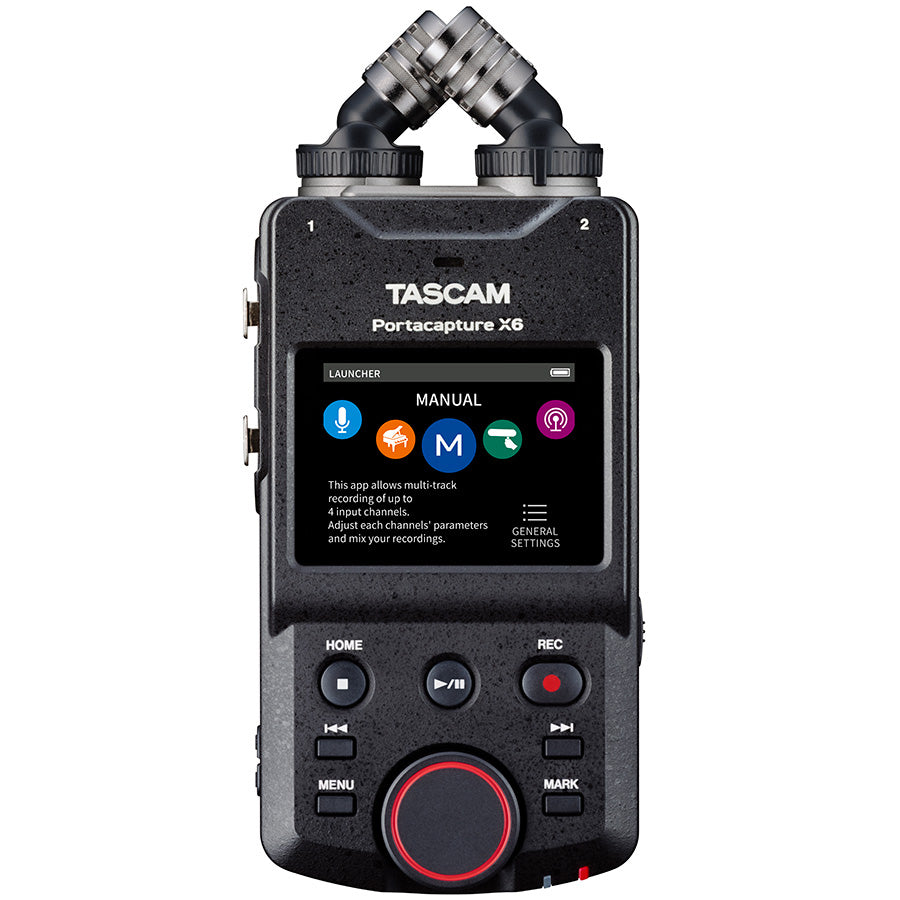

  • Portable field audio recorder front view with menu screen and top microphone capsules

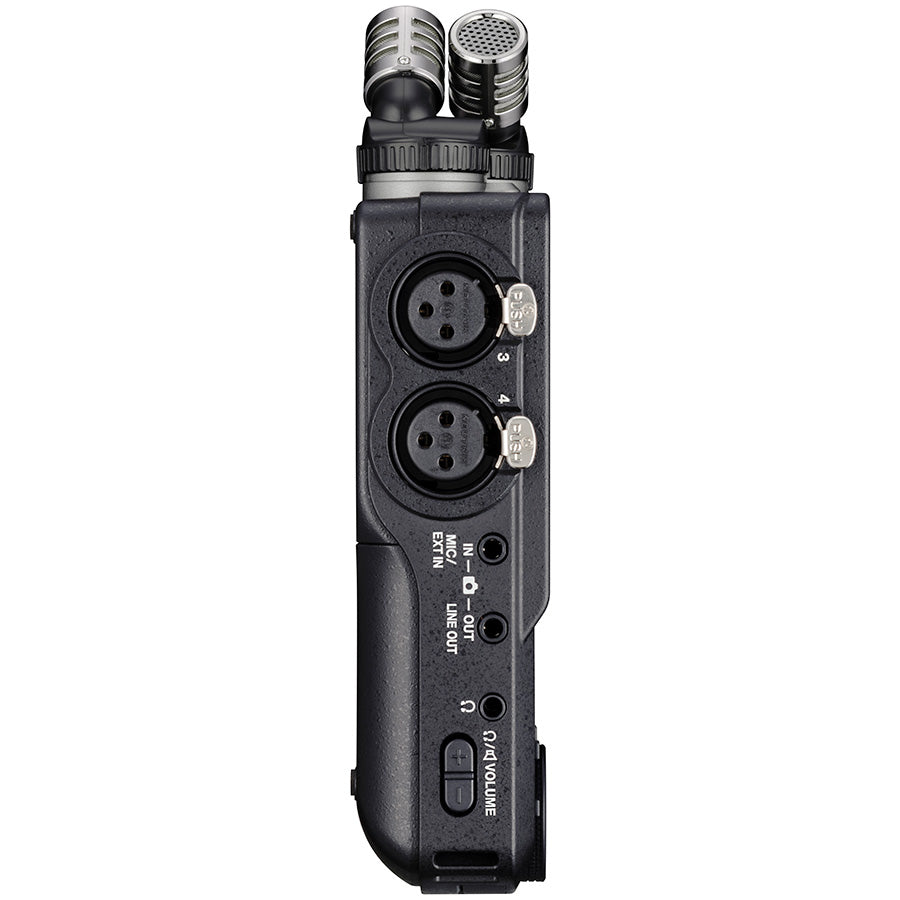

  • Portable field audio recorder side panel with XLR-style ports and microphone capsules

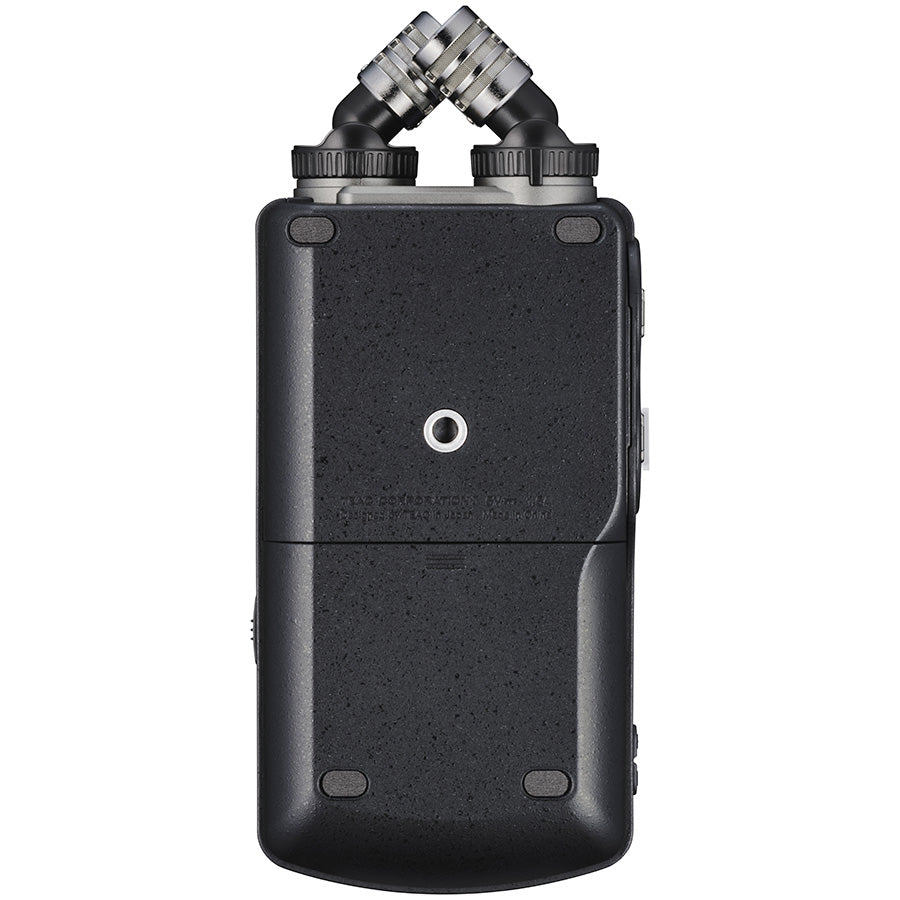

  • Portable field audio recorder rear cover with mounting opening and microphone capsules
  • Portable audio field recorder with dual side microphones and display, dark gray/black
  • Portable audio field recorder with two grille microphones in front housing, dark gray
Portacapture X6 6-Channel 32-Bit Float Portable Audio Field Recorder

Portacapture X6 6-Channel 32-Bit Float Portable Audio Field Recorder

TASCAM
Dhs. 1,629.00 Dhs. 1,909.00
Taxes included. Shipping calculated at checkout.
Browse all Collections
Capture audio anywhere with the Portacapture X6. The intuitive app-like operations on its color touch screen make it easy to record. State-of-the-art 96 kHz/32-bit float recording technology means you can capture audio softer or louder than ideal, ensuring you never miss that moment.
*Note: Only use the AK-BT1 adapter.
This product is not compatible with the AK-BT2 adapter.
  • Enjoy intuitive app-like controls on the X6, all using the large 2.4-inch touchscreen. Easy-to-use recording, pre-production, and post-production capabilities are just a touch away.
  • Capture using up to 96 kHz, 32-bit float recording
  • Record 6 tracks (4 track + 2 mix) simultaneously
  • 2 XLR inputs and dual built-in mics with switchable AB/true-XY patterns
  • The 2 XLR input terminals are compatible with phantom power (24V/48V) to support recordings with multiple mic/line inputs
  • Undistorted recording processing enables safe recording without lowering the S/N ratio with 32-bit float processing
  • Equipped with a 6-in/2-out USB audio interface function
  • Wireless remote control from smartphones/tablets is possible with the optional AK-BT1 Bluetooth® adapter (sold separately). Timecode sync is also possible via Bluetooth® (*Timecode sync supported from V1.10 firmware update)



Recorder specifications

Recording media
microSD cards (64MB - 2GB), microSDHC cards (4GB - 32GB), microSDXC cards (48GB - 512GB)
*Class 10 or higher required
Recording/playback formats

WAV (BWF)
44.1k/48k/96kHz, 16/24-bit, 32-bit float
MP3
44.1k/48kHz, 128k/192k/256k/320kbps

Number of channels

Input channels
4 channels maximum
Recording tracks
6 tracks maximum (4 tracks, stereo mix)
Analog audio input ratings

Mic inputs (balanced)

Input jacks 3-4(when INPUT SELECT set to MIC)

Connectors
XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Note: supports phantom power only when the MIC input is selected
Input impedance
2.2kΩ or higher
Maximum input level
+2dBu
Minimum input level
-75dBu
Input jacks 3-4 (when INPUT SELECT set to LINE)

Connectors
XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Inputimpedance
9kΩ or higher
Nominal input level
+4dBu(GAIN setting at minimum)
Maximum input level
+24dBu
Minimum input level
-53dBu
Line input (unbalanced)
MIC/EXT IN jack (can provide plugin power)
Connectors
3.5mm (1/8") stereo mini jack
Inputimpedance
10 kΩ or higher (when plug-in power is off )
1.8 kΩ or higher (when plug-in power is on)
Nominal input level
-20 dBV(GAIN setting at minimum)
Maximum input level
0 dBV
Minimum input level
-67 dBV

Analog audio output ratings

Line output (unbalanced)
LINE OUT jack
Connectors
3.5mm (1/8") stereo mini jack
Output impedance
210Ω
Nominal output level
-14dBV
Maximum output level
+6 dBV
Headphone output
headphone jack
Connectors
3.5mm (1/8") stereo mini jack
Maximum output
45mW + 45mW (THD+N 0.1% or less, into 32 Ω load)
Working impedance
16ohms to 400ohms
Built-in speaker
0.4 W (mono)

USB

Port
USB Type-C
Transfer mode
USB 2.0 Hi-Speed
Device classes
mass storage, USB audio 2.0 (USB class compliant)

USB audio

Sampling frequencies
44.1, 48, 96 kHz
Quantization bit depth
24-bit
Number of input channels
6 (output from unit)
Number of output channels
2 (input to unit)
Bluetooth device connector
For Bluetooth adapter (AK-BT1) only

Portacapture Control

iOS/iPadOS devices
iOS 16/iPadOS 16,iOS 15/iPadOS 15,iOS 14/iPadOS 14
Android devices
Android 11, Android 10
Note: Compatibility has been confirmed, but this does not guarantee operation with all devices.
Power
4 AA batteries (Alkaline, Ni-MH, or Lithium-ion)
USB bus power from a computer
TASCAM PS-P520U AC adapter (sold separately)
Power consumption
7.5W (maximum)
Dimensions
75 × 174.3 × 37.2 mm (W× H× D, excluding protrusions)
Weight
365/265g (with/without batteries)
Operating temperature range
0 - 40°C
Included
Portacapture X6 × 1
AA alkaline batteries × 4
Owner's Manual (including warranty) × 1
TASCAM ID registration guide × 1
