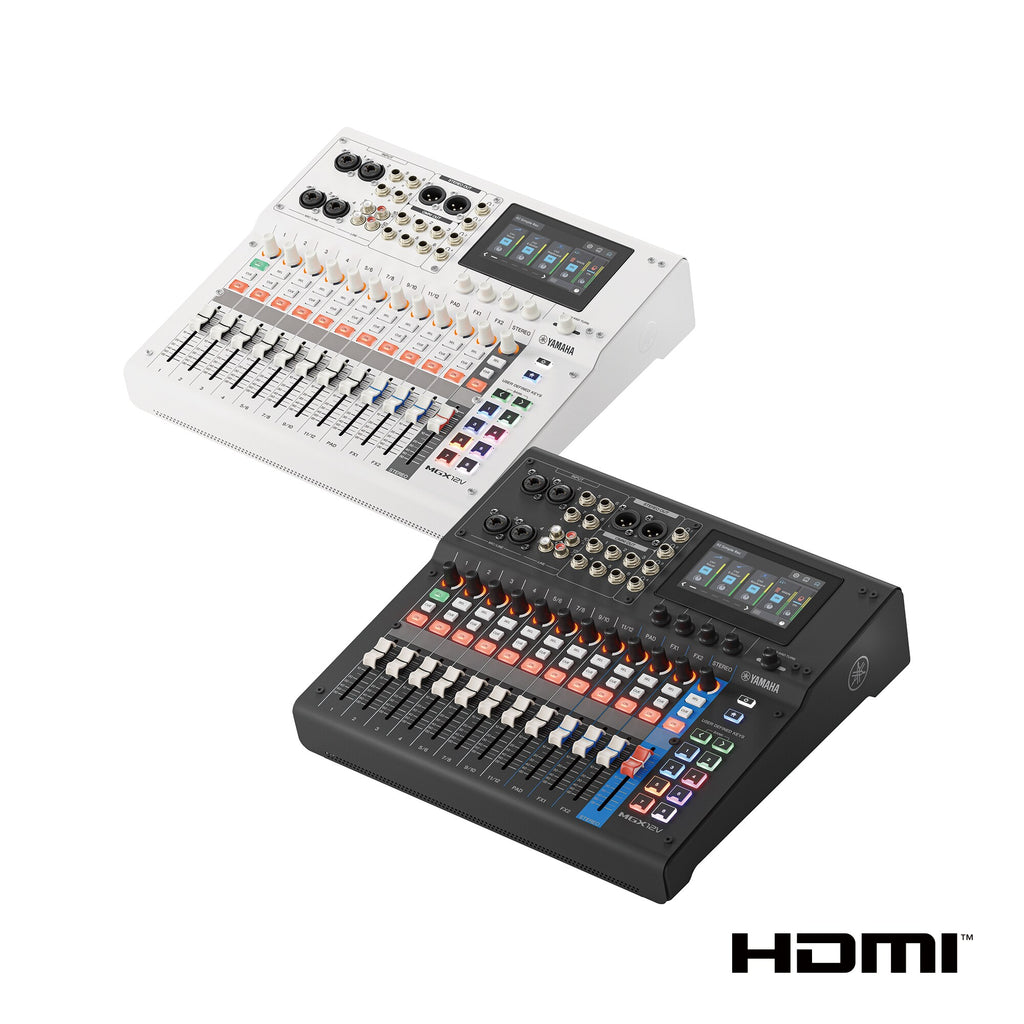

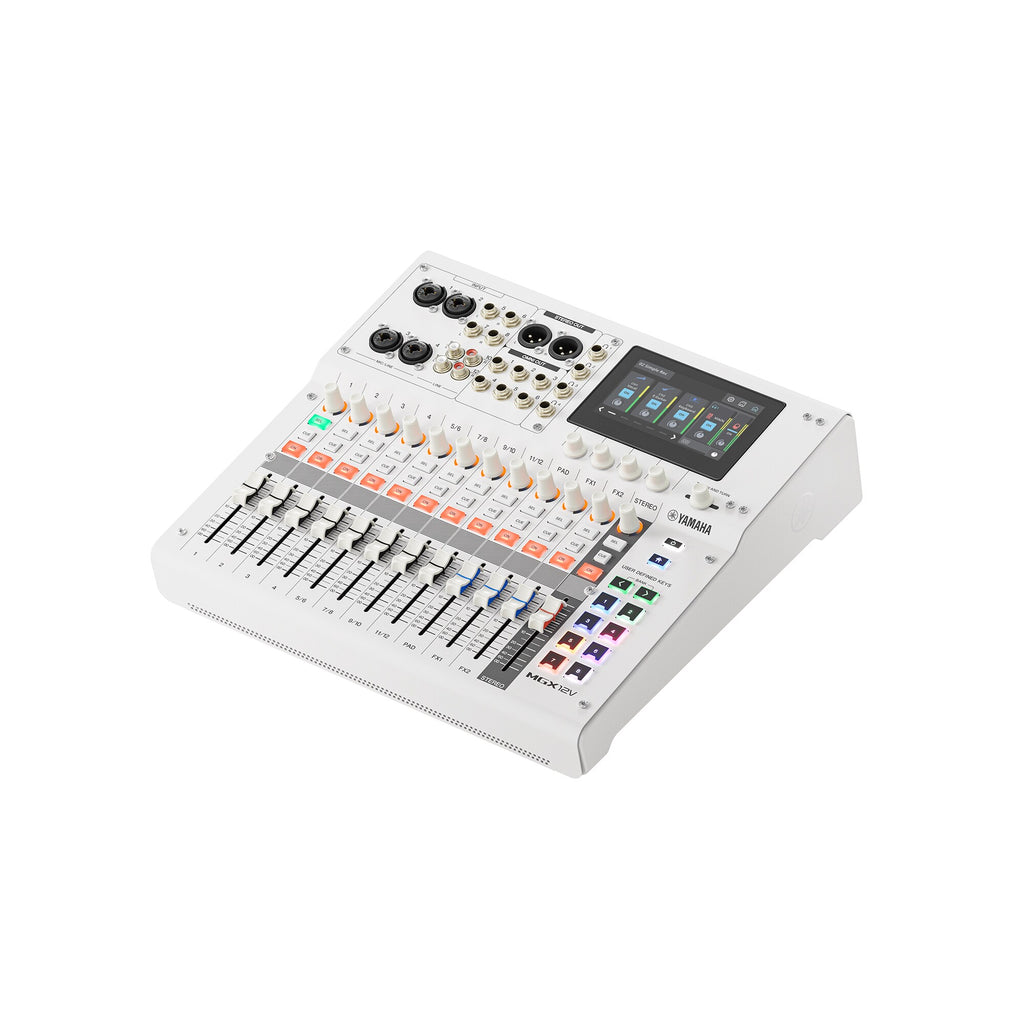

The MGX12V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX12V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.
-
11 + 1 fader configuration (non-motorized fader)
-
A 4.3-inch touchscreen with five control knobs
-
Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
-
Busses: 1 STEREO + 8 MIX
-
Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
-
Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones
-
USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
-
USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
-
microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
-
Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
-
HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough
-
Built-in DSP processor for professional sound and latency-free monitoring
-
Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
-
Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
The Digital Evolution of an Analog Classic
Building on the legacy of Yamaha's MG Series—already established as a global standard in mixing consoles—MGX digital mixing consoles deliver a perfect blend of flexibility, performance, and premium sound quality, excelling in a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications.
In addition to the essential features and versatility you expect from a professional mixer, the MGX12V also integrates an HDMI-USB audio/video interface with capture and pass-through functionality. This enables users not only to mix and output audio in a variety of ways, but also to simultaneously capture video to a PC and record or stream it together with the audio.
For content creators, sound engineers, producers, artists, and streamers—and especially for those producing podcasts with four participants—the four mic inputs and four headphone outputs, together with the ability to seamlessly integrate high-definition video into their workflow, open up new creative possibilities in a wider range of environments. In any application that involves content with both audio and video, the MGX12V will elevate your production quality and captivate your audience.
Installed Sound - Internal Online Conference
This setup integrates in-room audio sources, remote participants, and video inputs to support internal online conferences.
Audio from presenter microphones, Bluetooth audio for background music, other playback devices, and time-cue sounds triggered from the MGX sound pads—used for schedule and presentation-time management—is fed into the MGX12V and routed to the room’s monitor speakers.
Video sources via an HDMI switcher and audio from remote participants over USB are consolidated into a computer for online conferencing and streaming, while a multitrack backup is simultaneously recorded to a microSD card in the MGX12V.
Video & Audio Content Production Setup
This setup supports video and audio content production by integrating studio microphones, remote guests, playback sources, and video inputs into the MGX12V.
Audio from multiple MC microphones, USB-connected remote participants, stand microphones, Bluetooth audio, and sync tones triggered from the MGX sound pads is routed into the mixer and delivered to individual monitoring headphones.
HDMI video sources are combined with the mixed audio and sent via USB to a computer for recording in Cubase, while a simultaneous multitrack backup is captured to a microSD card in the MGX.
Technical Specifications
Feature |
Specification |
Console Type |
Digital Mixing Console with Video Capture |
Input Processing Channels |
18 Channels (4 Mono + 4 Stereo + 1 Sound Pad + 2 FX Return) |
Fader Configuration |
11 + 1 Faders (60mm Non-Motorized) |
Video Interface |
HDMI-to-USB Audio/Video Capture with Real-Time HDMI Passthrough |
Display & Navigation |
4.3-inch Color Touchscreen with 5 Rotary Encoders + Touch & Turn Knob |
Mic Preamps |
4 High-Performance MGX Mic Preamps (XLR/TRS Combo Jacks) |
Analog Inputs |
4 Combo (Mic/Line) + 4 TRS (Line) + 4 RCA (Dual Stereo Pairs) |
Analog Outputs |
2 XLR (Stereo Out) + 6 TRS Phone (Omni/Mix Outs) + 4 Headphone Outs |
Headphone Out |
4 Independent 1/4" TRS Ports with Individual Volume Controls |
Bus Architecture |
1 STEREO Bus + 8 MIX Busses + 2 FX Busses |
USB Main Interface |
18-in / 18-out USB Audio Interface (32-bit / 96 kHz) |
USB Sub Interface |
2-in / 2-out Secondary USB Audio Port (16-bit / 48 kHz) |
Direct Recording |
16-Track Direct Recording / 2-Track Playback via onboard microSD Card |
Wireless Audio |
Bluetooth 5.0 (A2DP Audio Input) |
Sound FX / User Keys |
8 Assignable Sound Pads (4 Switchable Banks) |
Assistive DSP Tools |
Auto Gain, Clip Safe, Ducker, Multi-Band Compressor, Delay, Scene Recall |
Dimensions & Weight |
335 mm x 319 mm x 96 mm (13.2" x 12.6" x 3.8") | 4.46 kg (9.8 lbs) |
