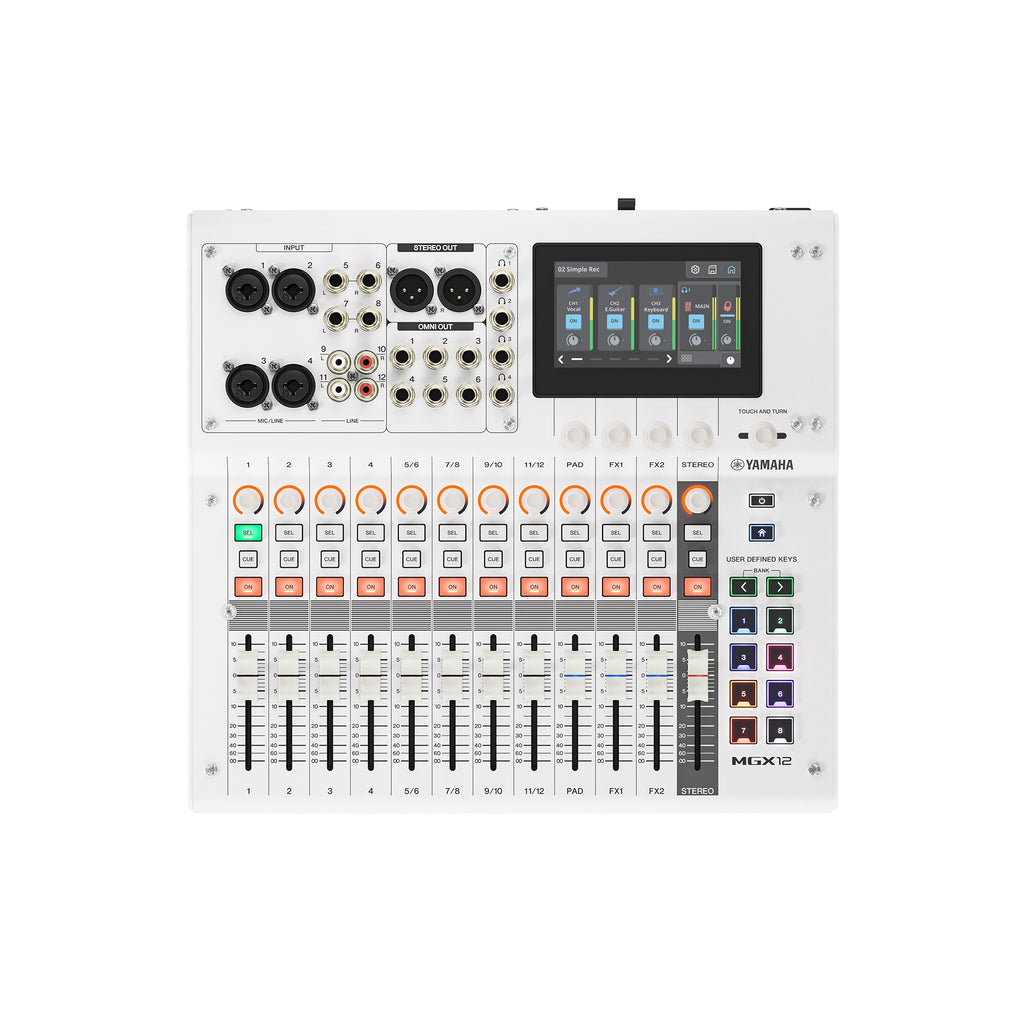

White 18-channel digital mixing console rear panel with ports, faders, and touchscreen
  • White 18-channel digital mixing console rear panel with ports, faders, and touchscreen

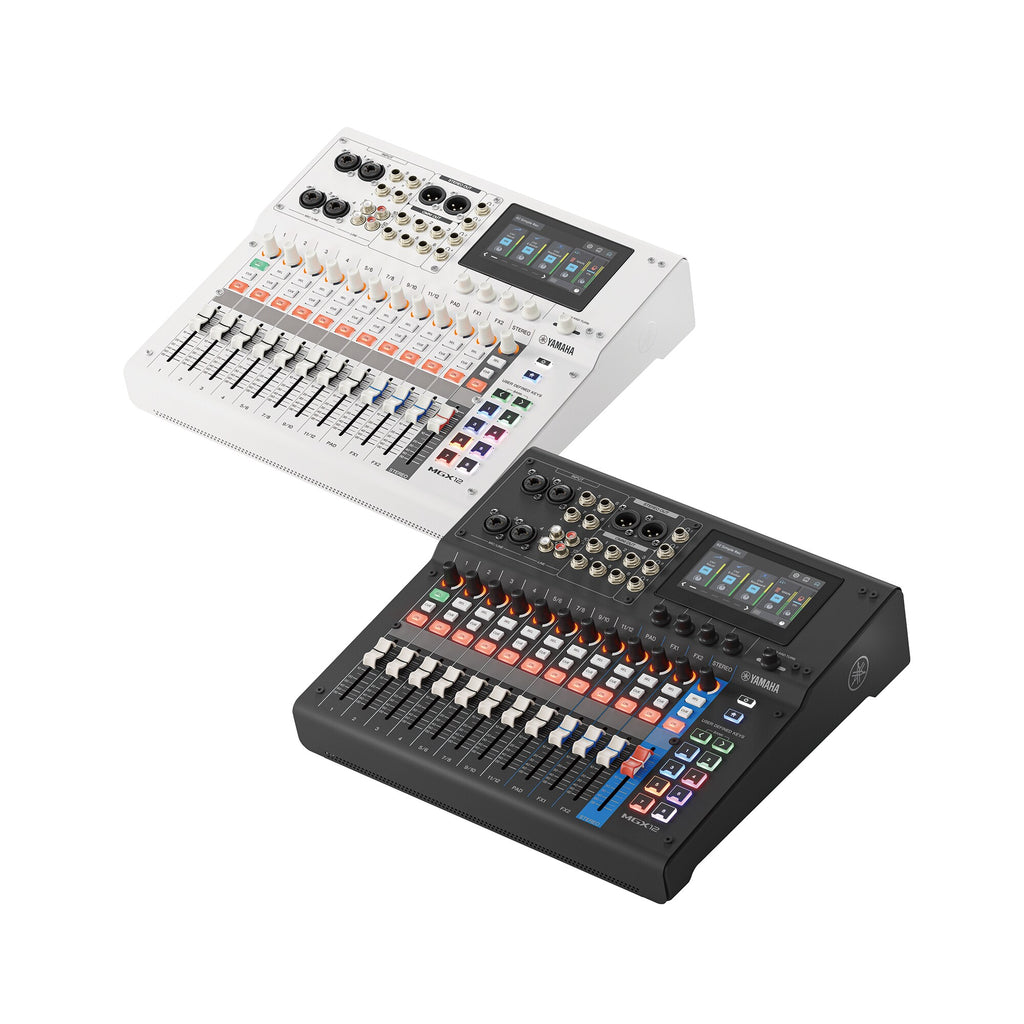

  • 18-channel digital mixing console with color display; white and black units

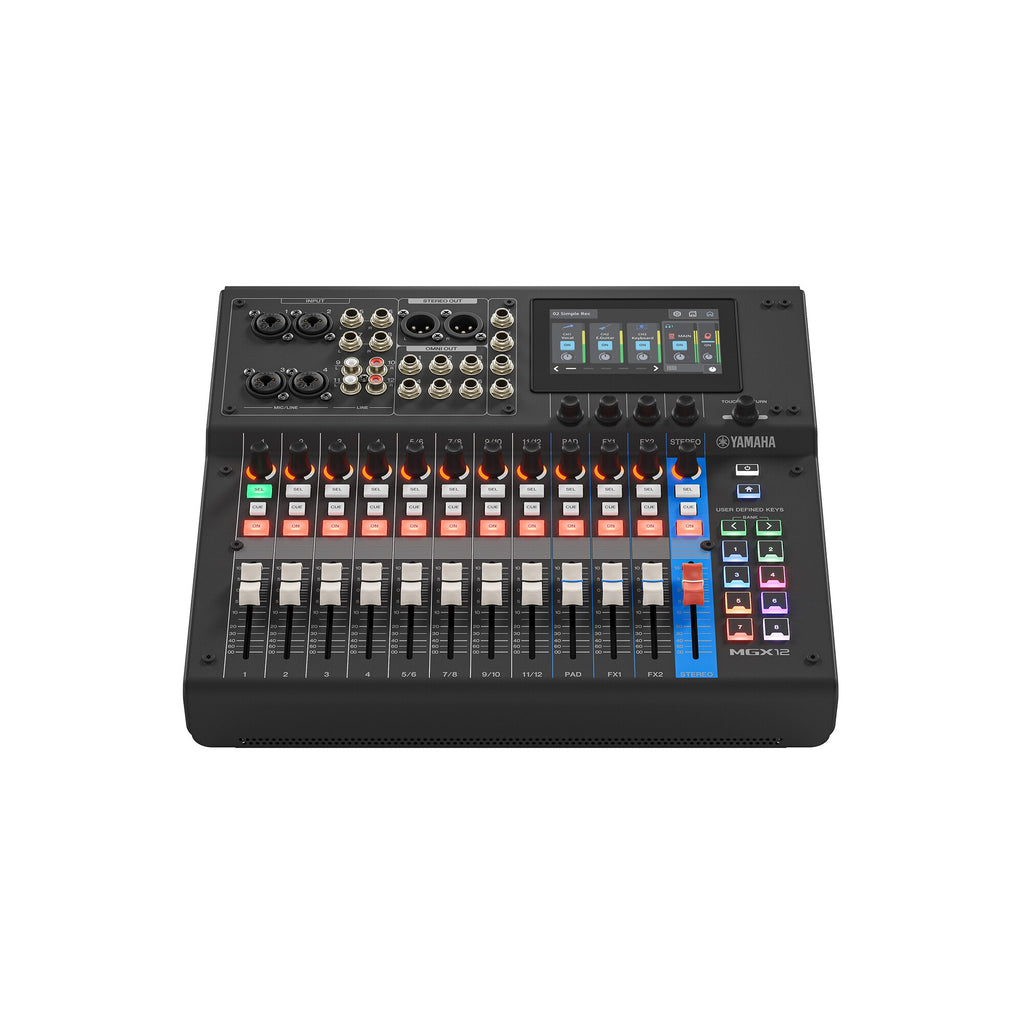

  • Black 18-channel digital mixing console rear panel with touchscreen and channel controls

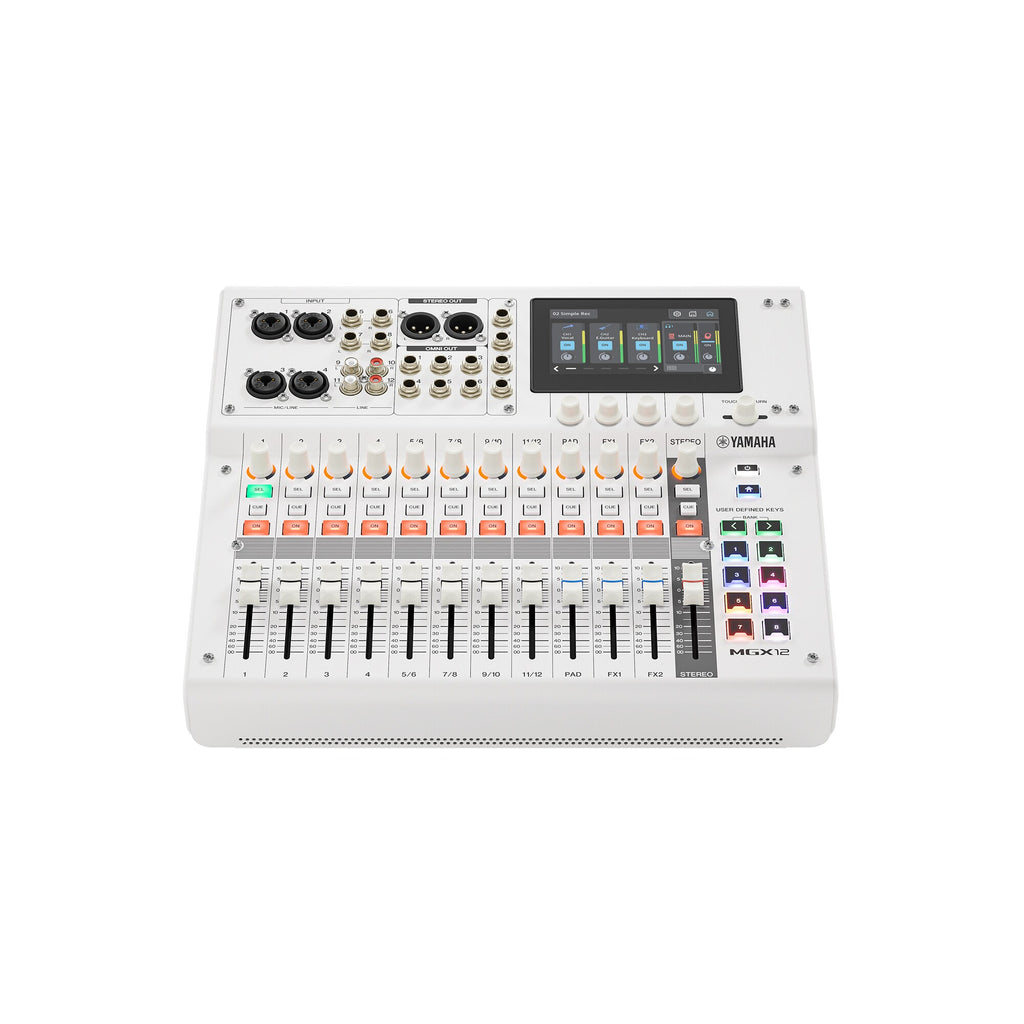

  • White 18-channel digital mixing console rear panel with jacks, knobs, and faders

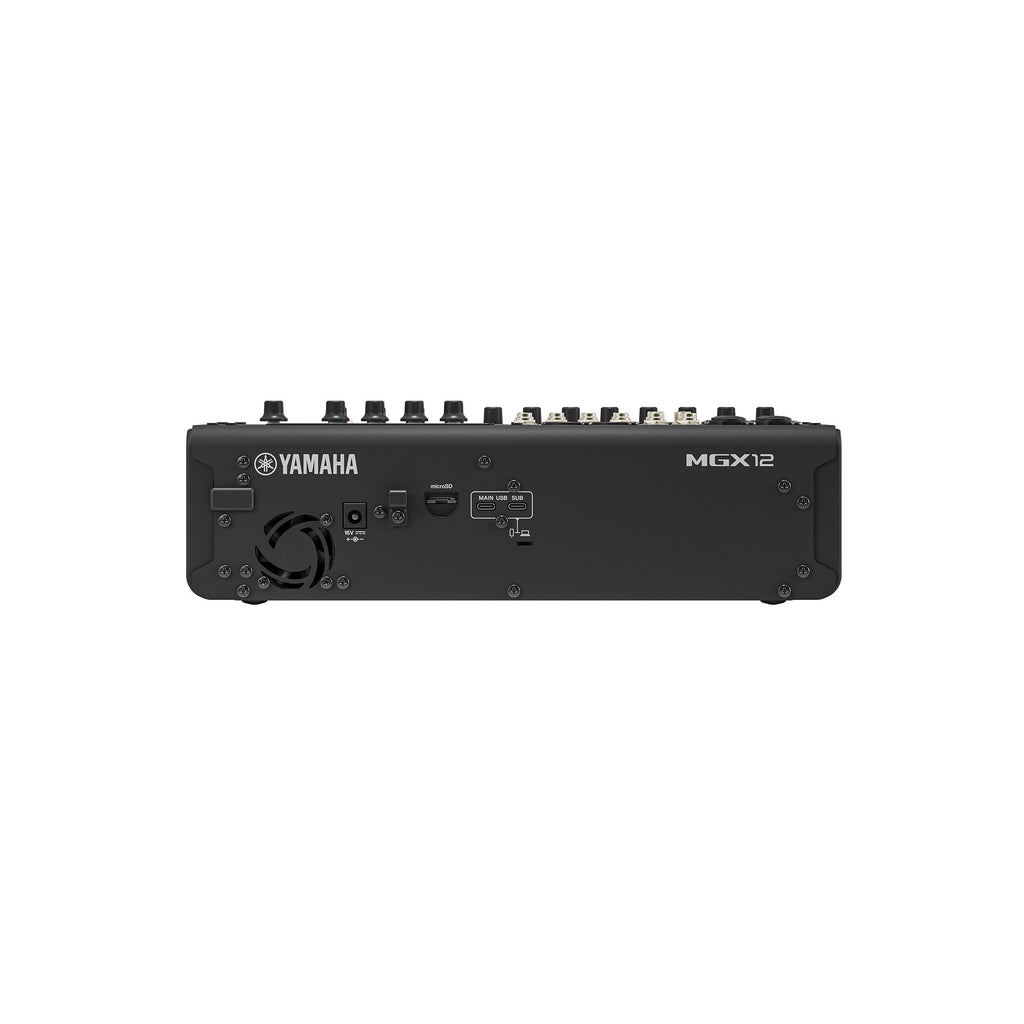

  • Black digital mixing console with side controls, knobs, and MGX12 marking

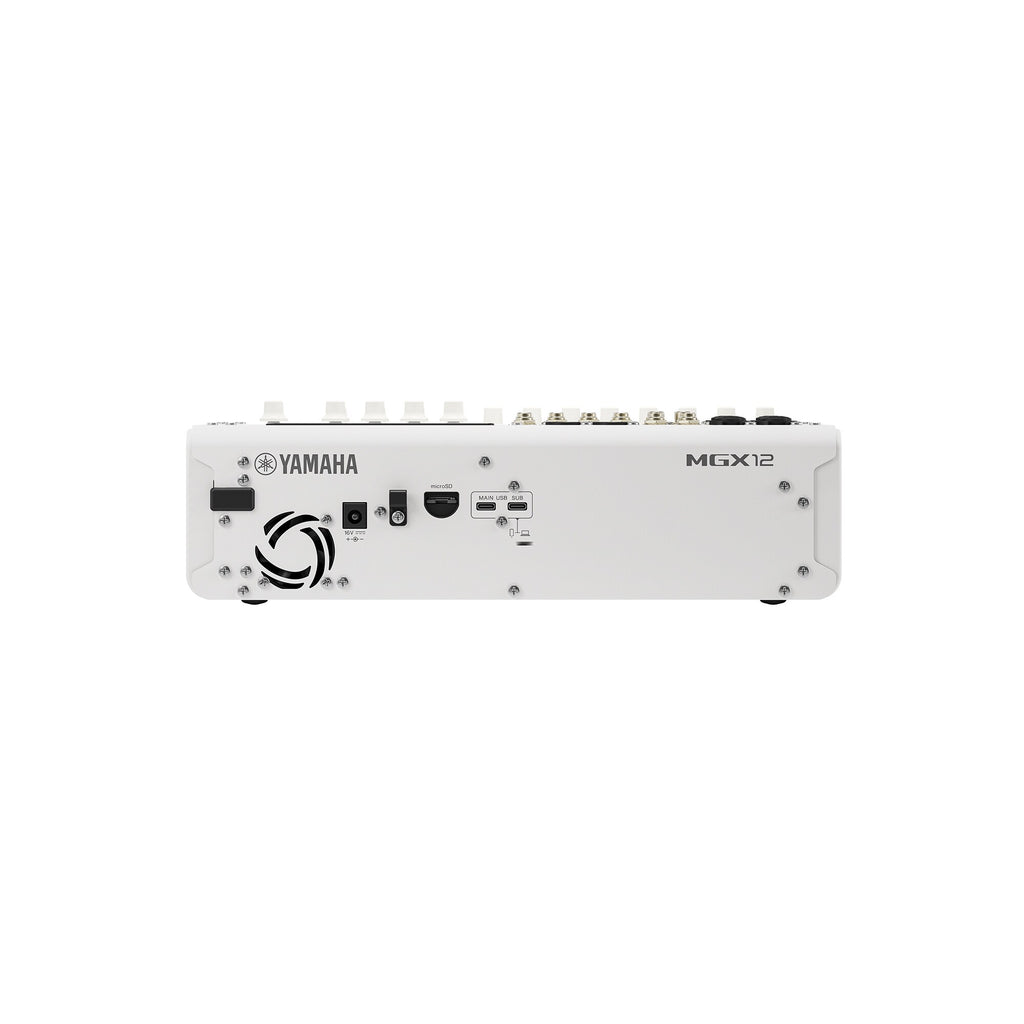

  • White digital mixing console with side controls, knobs, and MGX12 marking

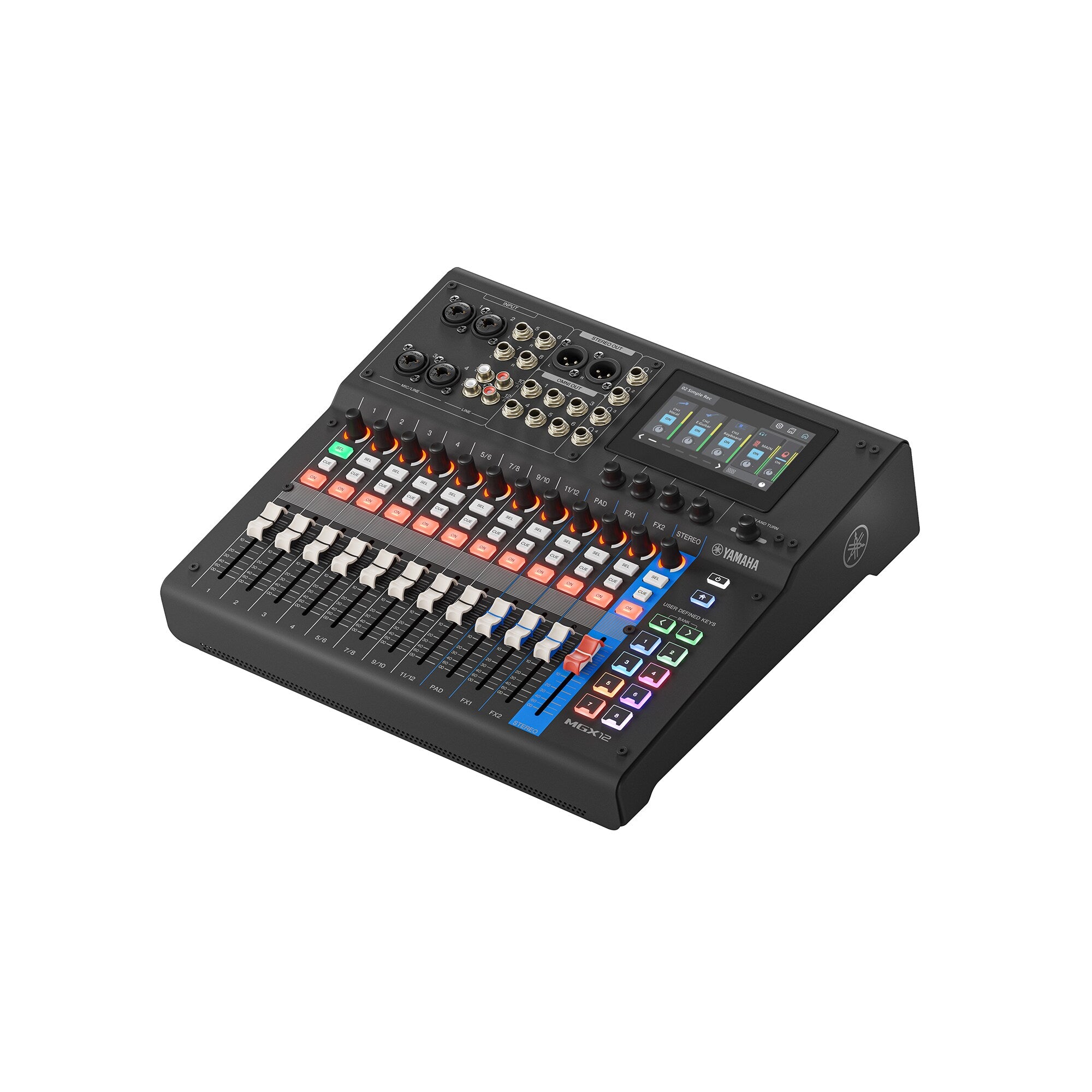

  • Black digital mixing console with faders, colorful channel buttons, and touchscreen

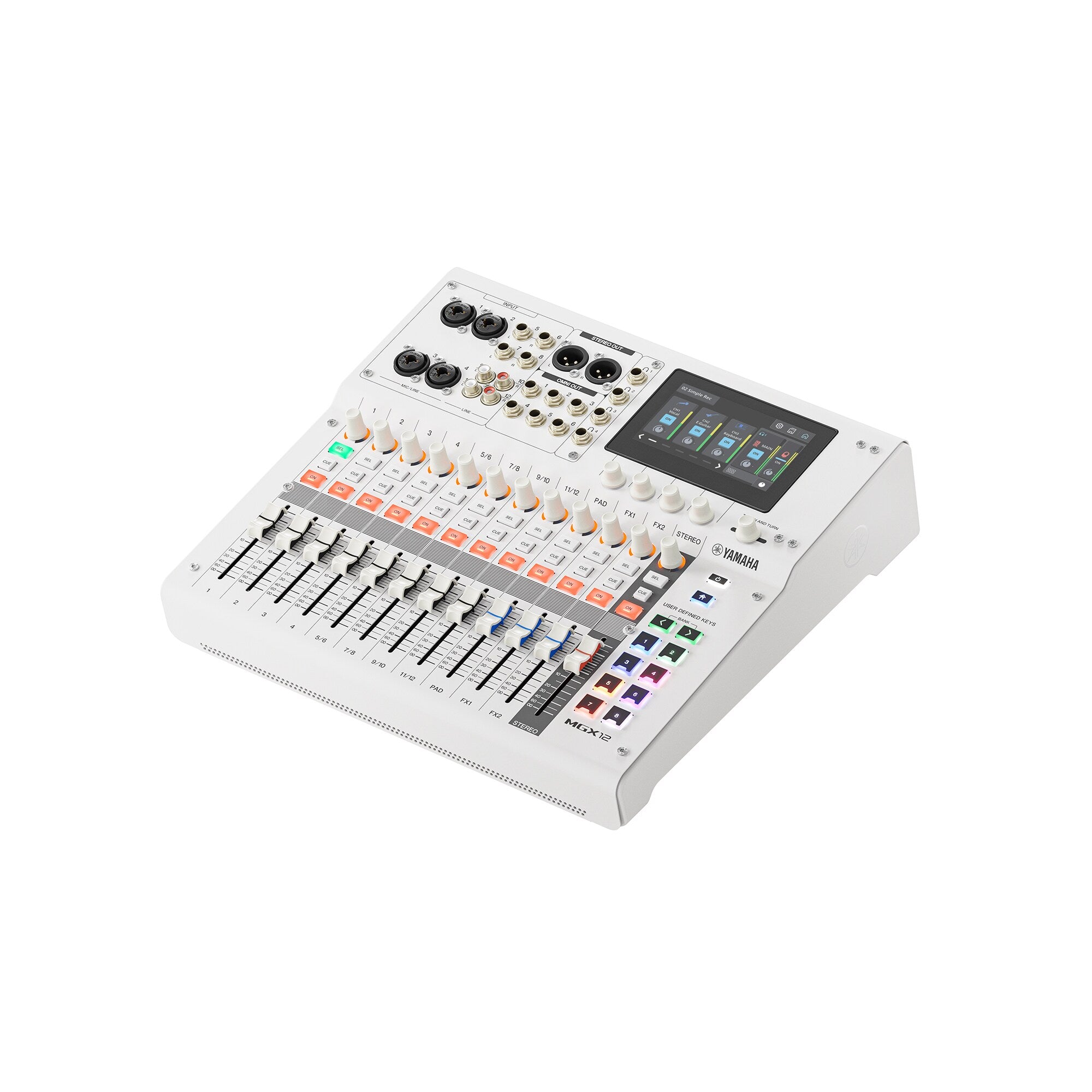

  • White digital mixing console with knobs, faders, colorful buttons, and display

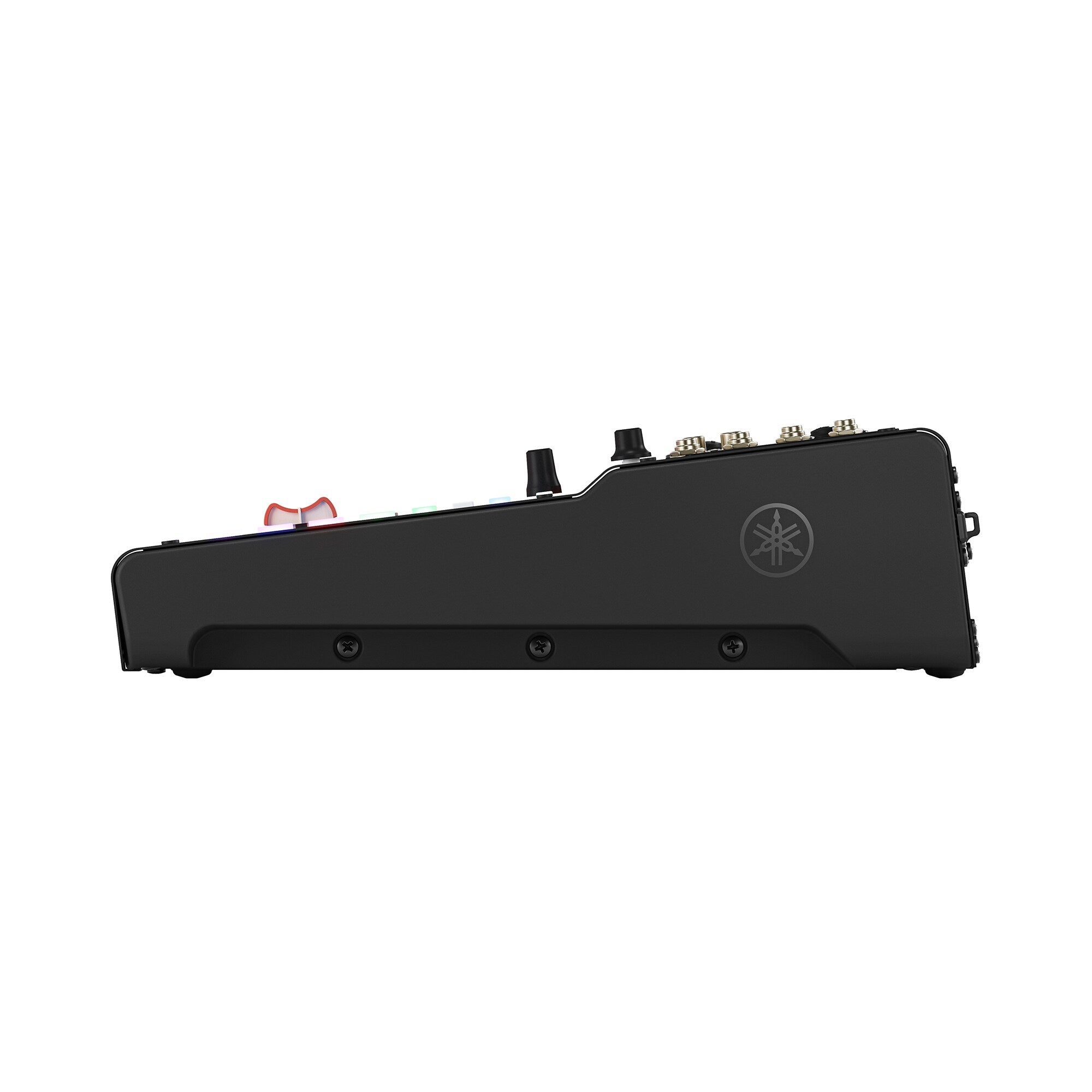

  • Black digital mixing console with top controls and rear connection ports

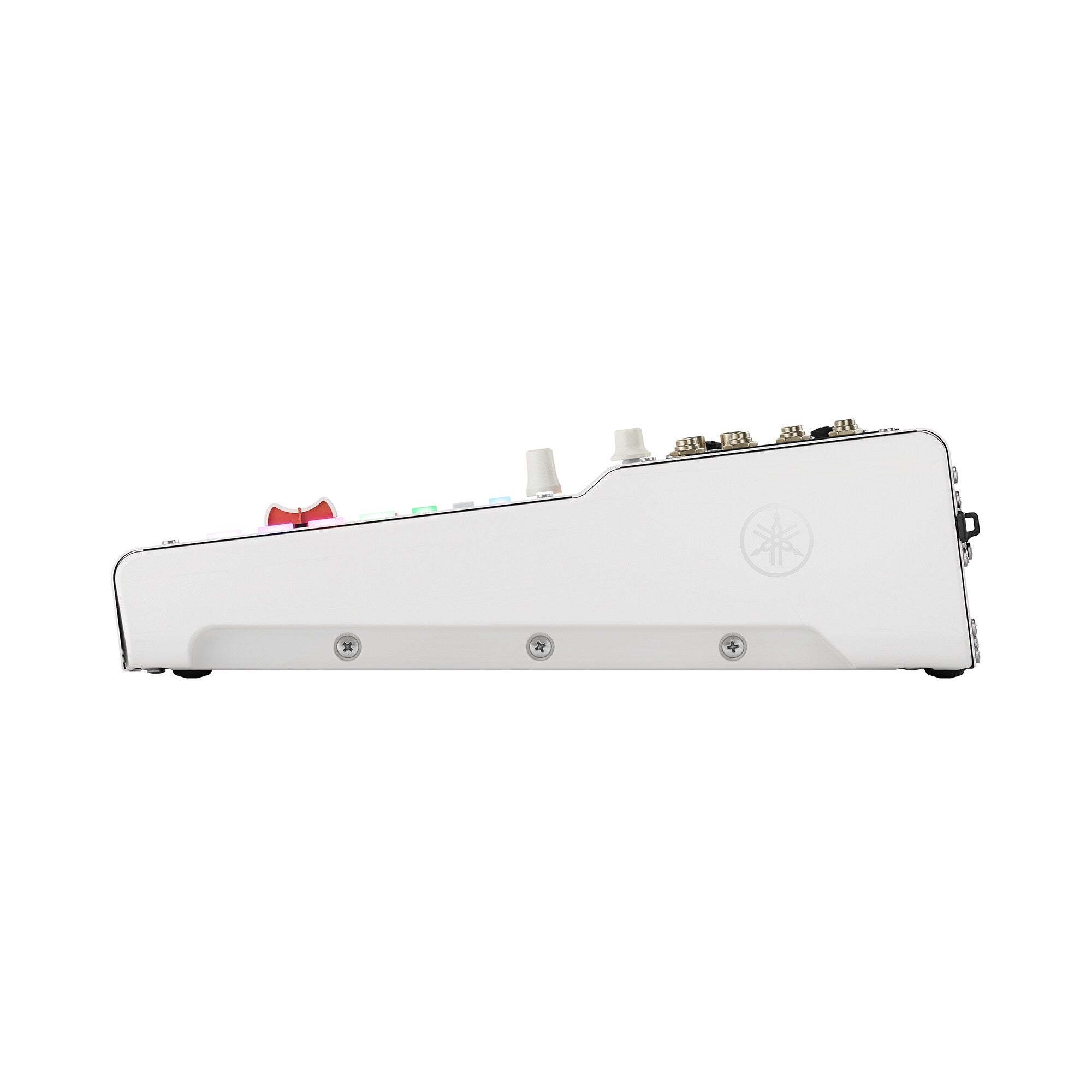

  • White digital mixing console with top controls and rear connection ports

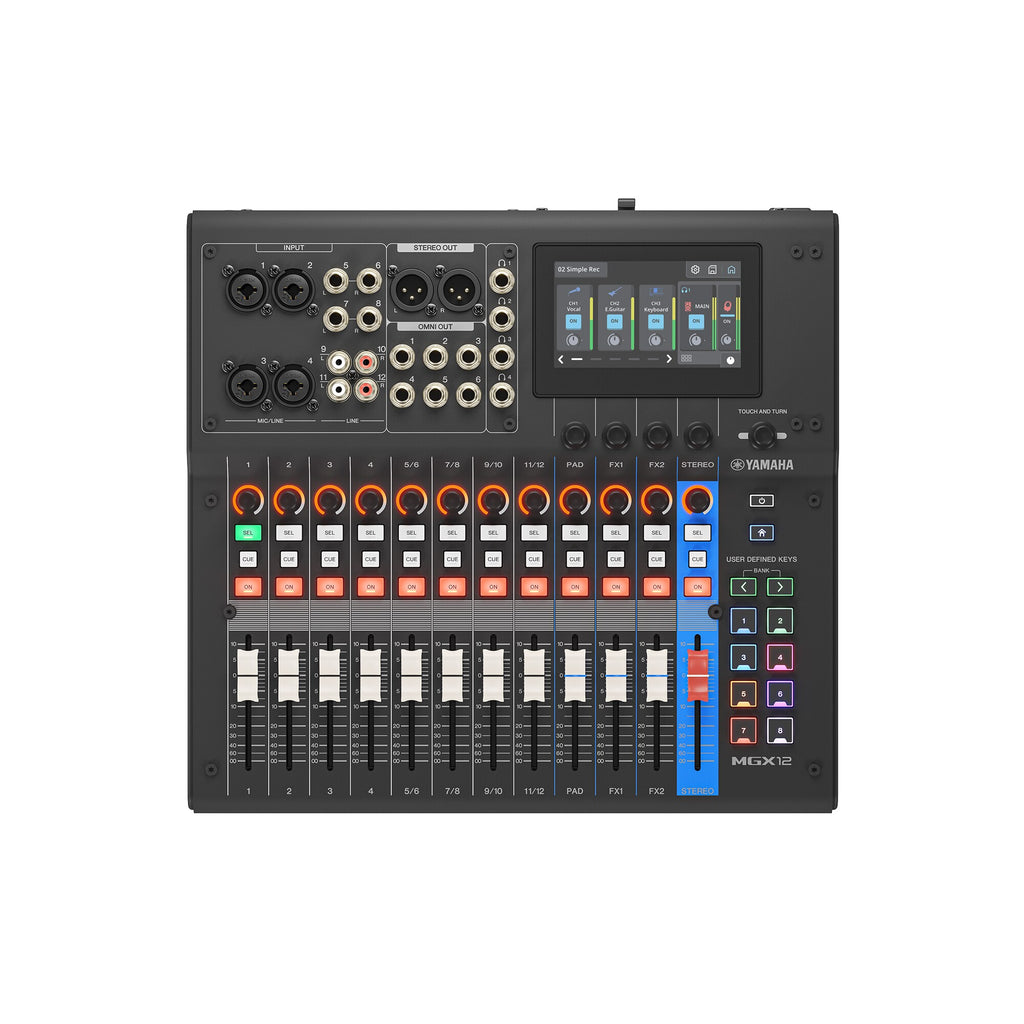

  • Black 18-channel digital mixing console rear panel with audio ports and touchscreen
MGX12 - 18 Channel Digital Mixing Console

MGX12 - 18 Channel Digital Mixing Console

Yamaha
Dhs. 3,179.00
Taxes included. Shipping calculated at checkout.
Browse all Collections
ColorWhite
The portable MGX12 compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The MGX12 offers superb sound quality, intuitive and fast setup and operation, and professional-level features.
  • 11 + 1 fader configuration (non-motorized fader)
  • A 4.3-inch touchscreen with five control knobs
  • Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
  • Busses: 1 STEREO + 8 MIX
  • Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
  • Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones
  • USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
  • USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
  • microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
  • Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
  • Built-in DSP processor for professional sound and latency-free monitoring
  • Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
  • Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)


Versatility and Professional Sound You Can Count On

An audio mixer is expected to offer considerable versatility to accommodate a wide range of applications—such as live sound, podcast and live streaming, and recording—while delivering audio quality that satisfies the audience, the musicians and performers on stage, and you, the one who supports and shapes the entire experience.

The MGX features carefully selected physical I/O and extensive mixing capacity, enabling flexible sound creation. Onboard DSP effects further enhance audio processing power, delivering a refined, professional sound for any application.




Live Sound - Small band street performance

This setup supports small band street performances by mixing vocal microphones, guitars, keyboards, and Bluetooth background music through the MGX12.
Audio from each instrument and microphone is routed into the mixer and sent to the FOH speakers for live sound reinforcement.
The mixed audio is also delivered via USB to a computer for recording in Cubase, while a simultaneous multitrack backup is captured to the MGX's microSD card.







Production – Mobile Recording

This setup is designed for mobile recording, capturing dialogue, boom mic audio, and sync tones through the MGX12.
Audio from three MC microphones, a boom microphone, and sync tones triggered from the MGX sound pads is mixed and delivered to individual monitoring headphones for on-site checking.
The mixed audio is sent via USB to a computer for recording in Cubase, while a simultaneous multitrack backup is captured to the microSD card in the MGX.


    Key Features

  • 18-Channel Mixing Power: 4 mono channels, 4 stereo channels, a Sound Pad channel, and 2 dedicated FX returns.
  • Studio-Grade Audio: High-end 32-bit/96 kHz processing ensures ultra-low latency (<0.4ms) and a professional 125dB dynamic range.
  • Flexible Multitrack Recording: Record up to 18 tracks directly to your computer via USB-C, or 16 tracks to a microSD card without a PC.
  • Intuitive Touch Interface: A vibrant 4.3-inch color touchscreen paired with a physical master fader offers seamless navigation.
  • On-Board Pro DSP: Loaded with Yamaha's legendary REV-X reverb, multi-band compressors, amp simulators, and Pitch Fix.
  • Smart Assistive Tools: Pro-level mixing made easy with Auto Gain, Clip Safe, and quick-access Scene Recall.
  • Wireless Connectivity: Built-in Bluetooth 5.0 allows seamless backing track playback or audio streaming from mobile devices.
  • Robust I/O: Features 4 XLR/TRS combo inputs, multiple stereo line inputs, and 4 independent headphone monitor outputs.



    Technical Specifications

  • Frequency / Latency: 44.1 kHz to 96 kHz sampling rate | <0.4 ms analog-to-analog latency.
  • Buses: 8 Mix buses, 1 Stereo bus, 2 FX buses, and 1 Cue bus.
  • USB Audio Interface: 18-in/18-out (Main USB-C) | 2-in/2-out (Sub USB-C).
  • Dimensions (W x H x D): 335 mm x 96 mm x 319 mm (13.2" x 3.8" x 12.6").
  • Weight: 3.9 kg (8.6 lbs)—perfect for mobile rigs.



   What’s in the Box?

  • Yamaha MGX12 Digital Mixing Console
  • Power Adapter
  • Cubase AI & WaveLab Cast Download Access Codes
  • Quick Start Guide
