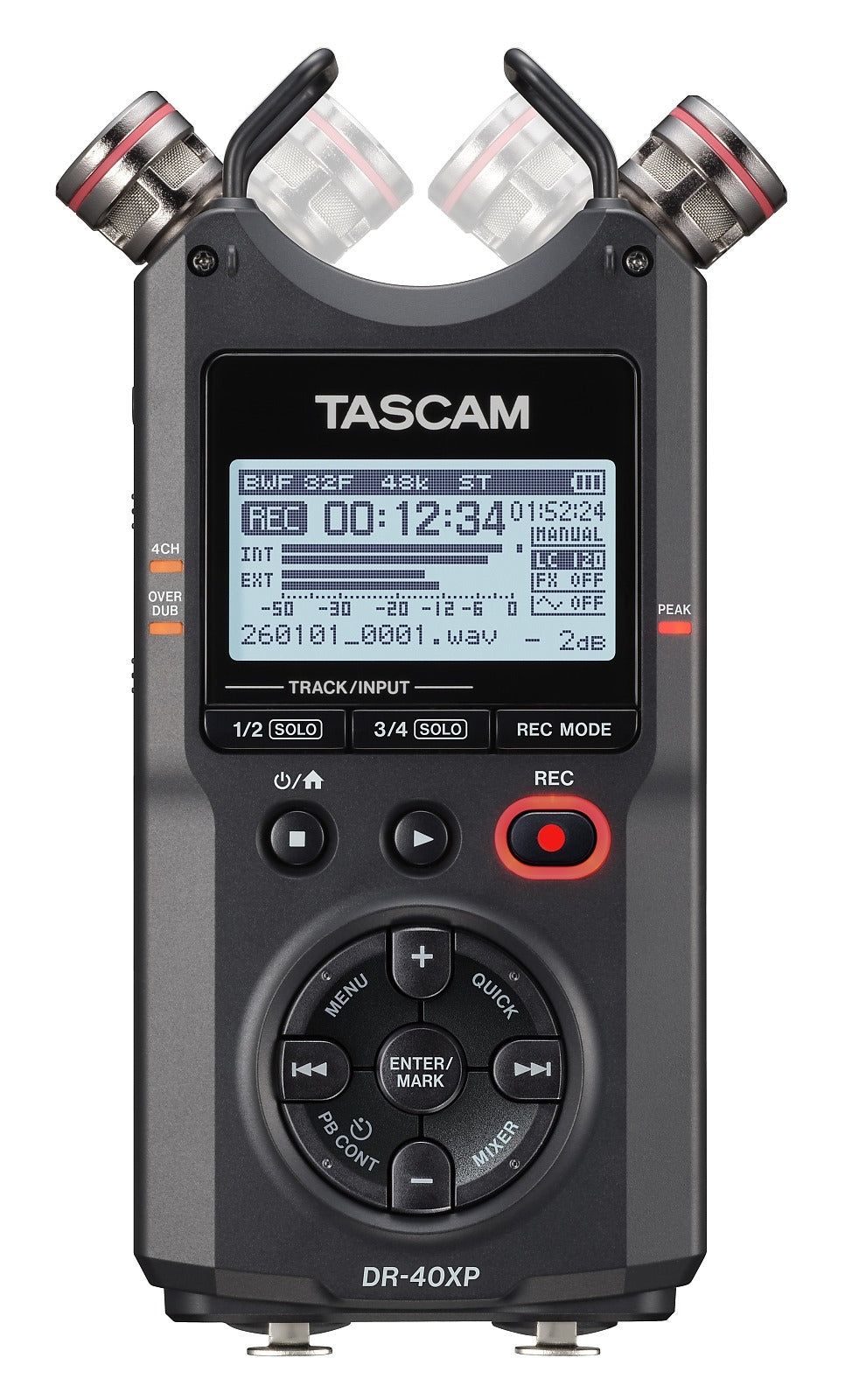

  • Portable digital audio recorder with TASCAM screen, buttons, and two mic capsules, black.

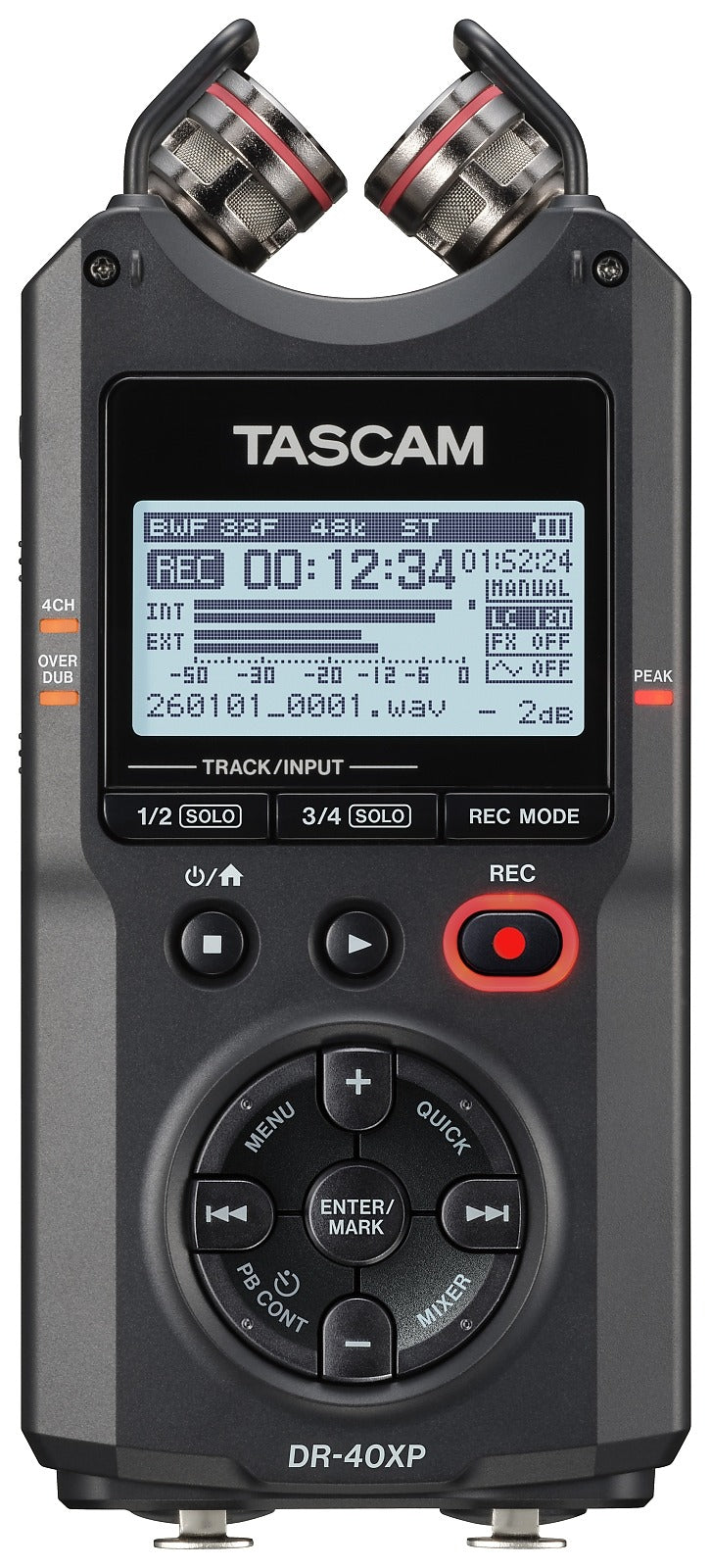

  • Portable recorder with two mic capsules, TASCAM screen, and round control dial, black.

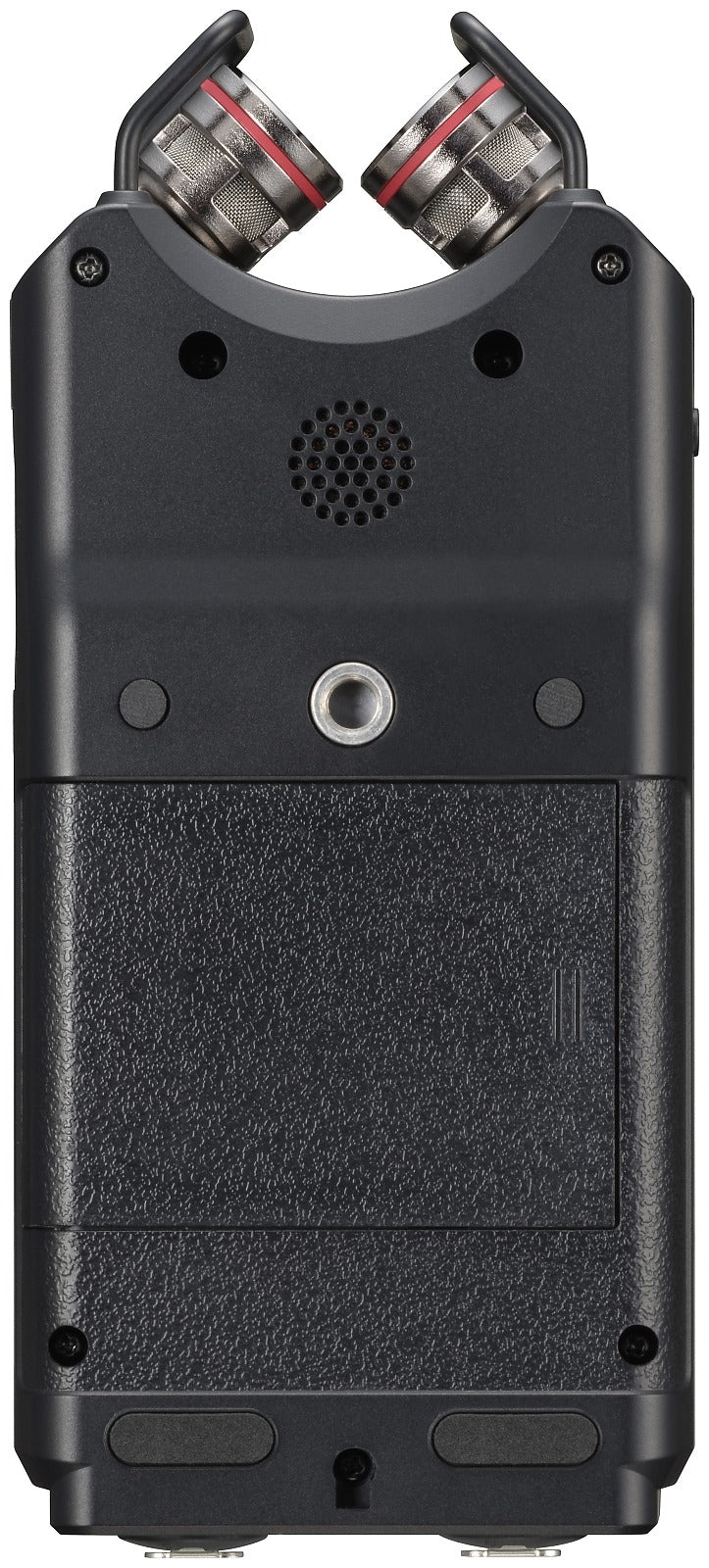

  • Portable four-track digital audio recorder with two mic capsules and black body.

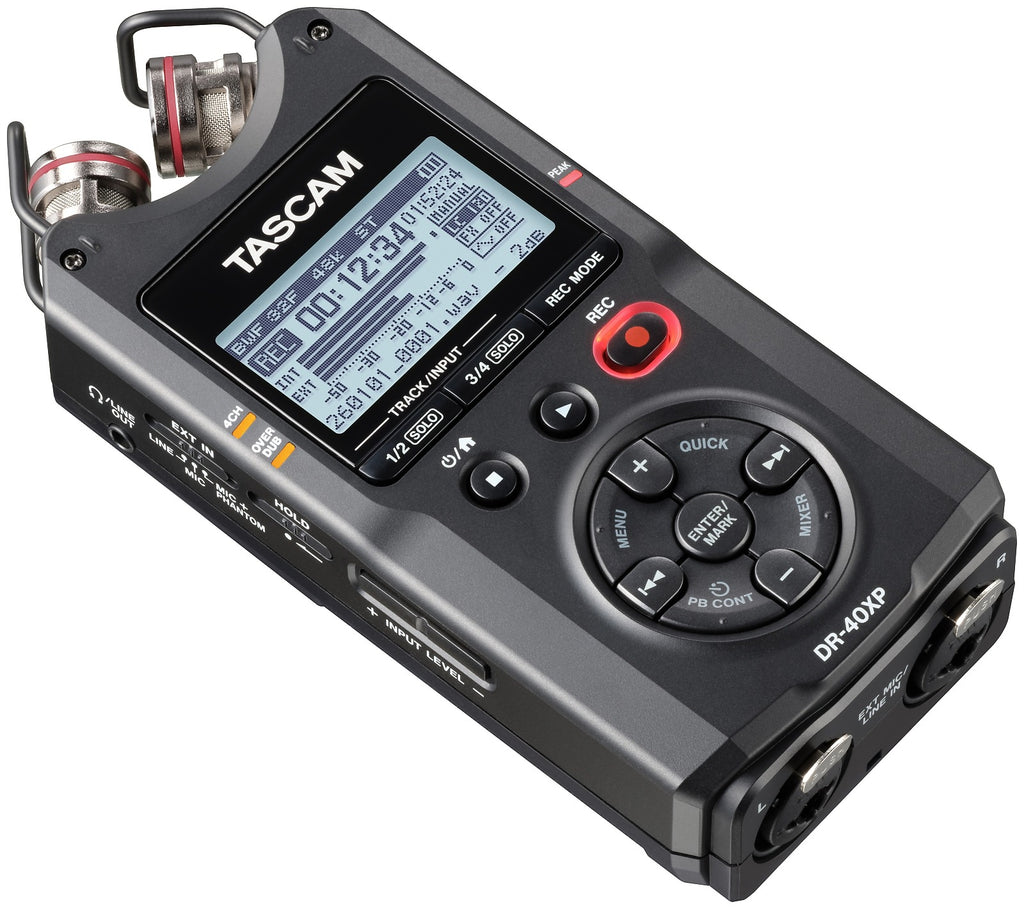

  • Portable recorder angled view with LCD screen, button controls, and dual mic capsules, black.

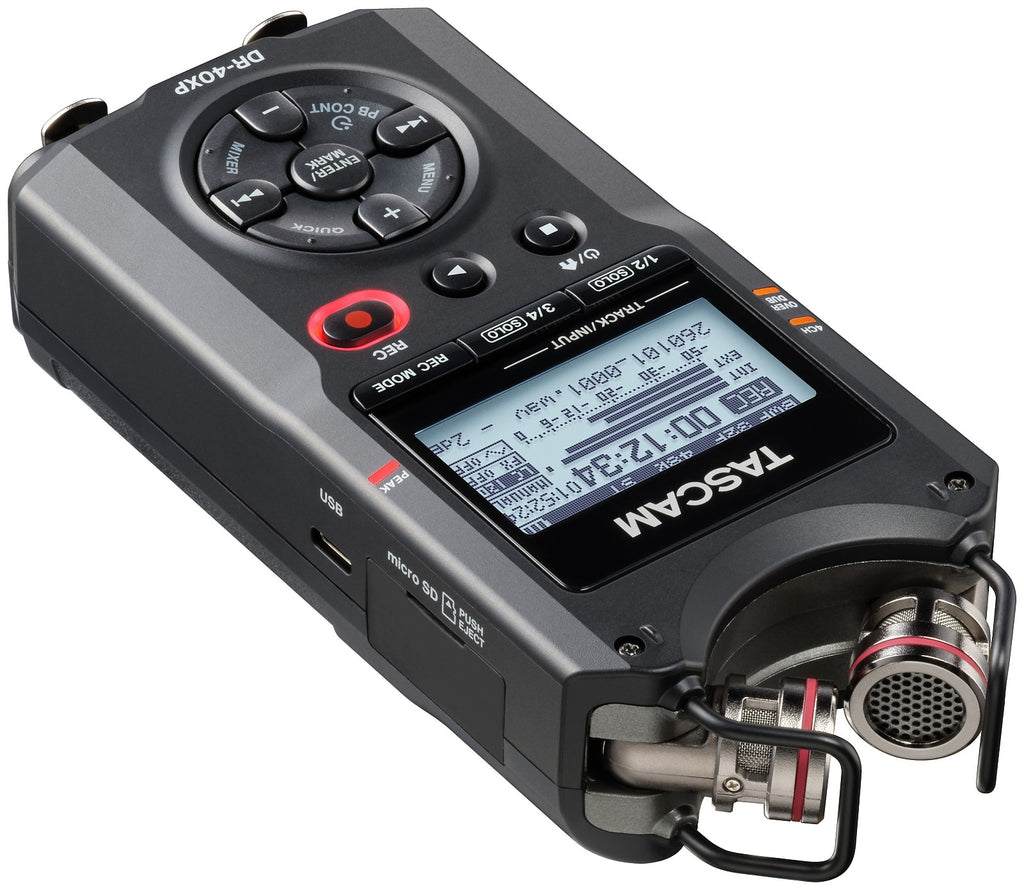

  • Portable recorder angled view with LCD screen, top controls, and dual mic capsules, black.

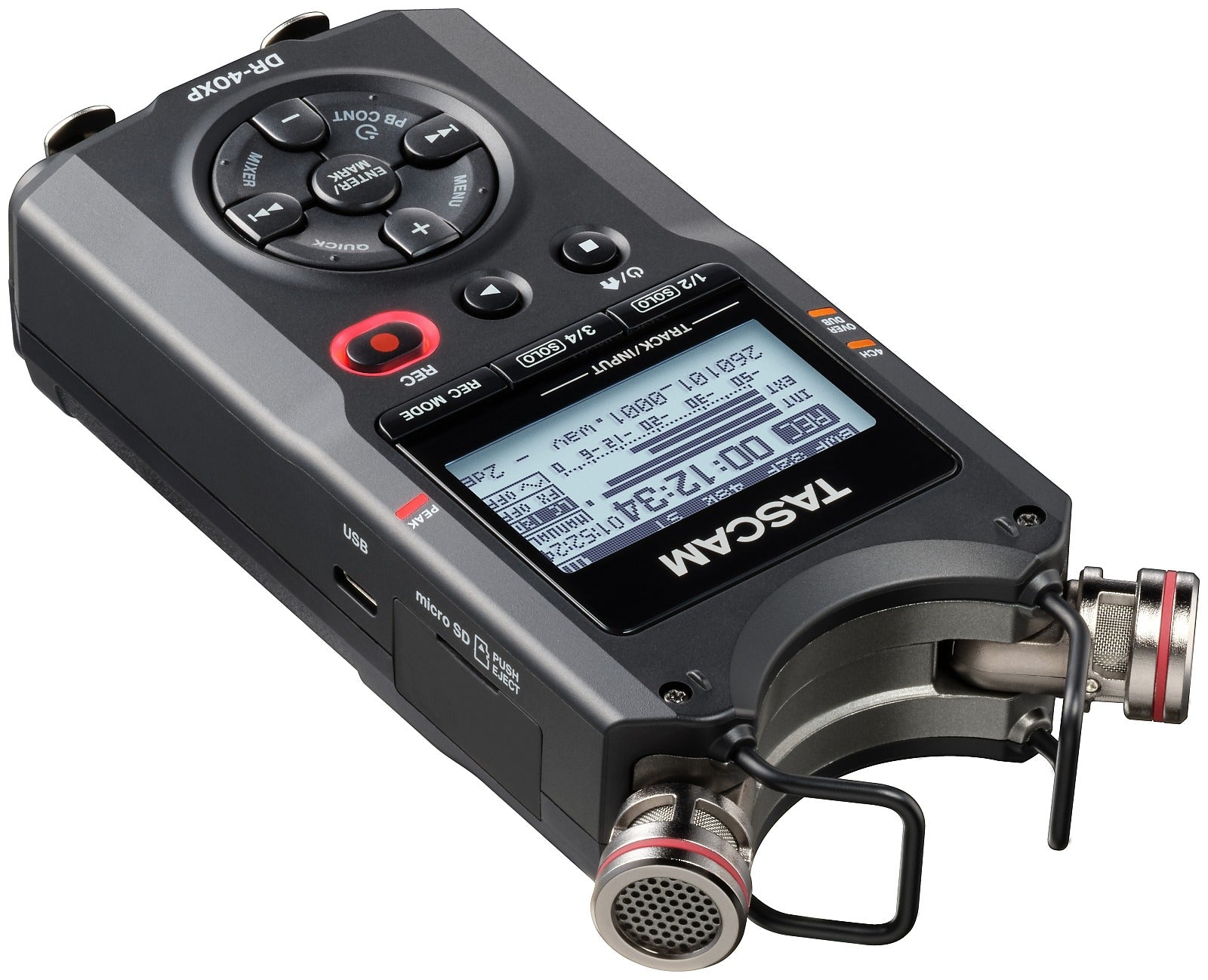

  • Portable recorder top view with LCD screen, control buttons, and dual mic capsules, dark gray.

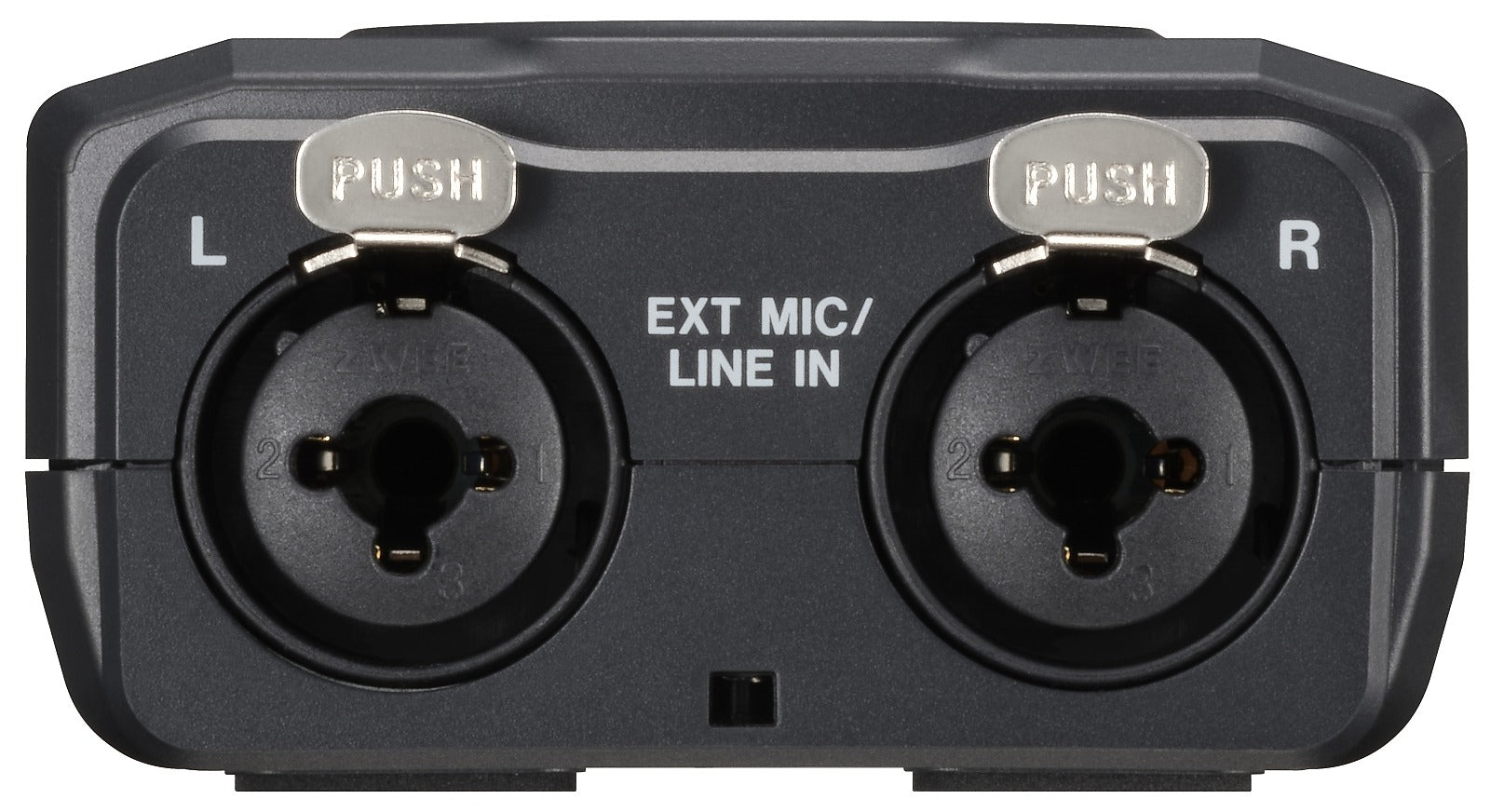

  • Recorder back panel with EXT MIC/LINE IN L and R ports, black housing.

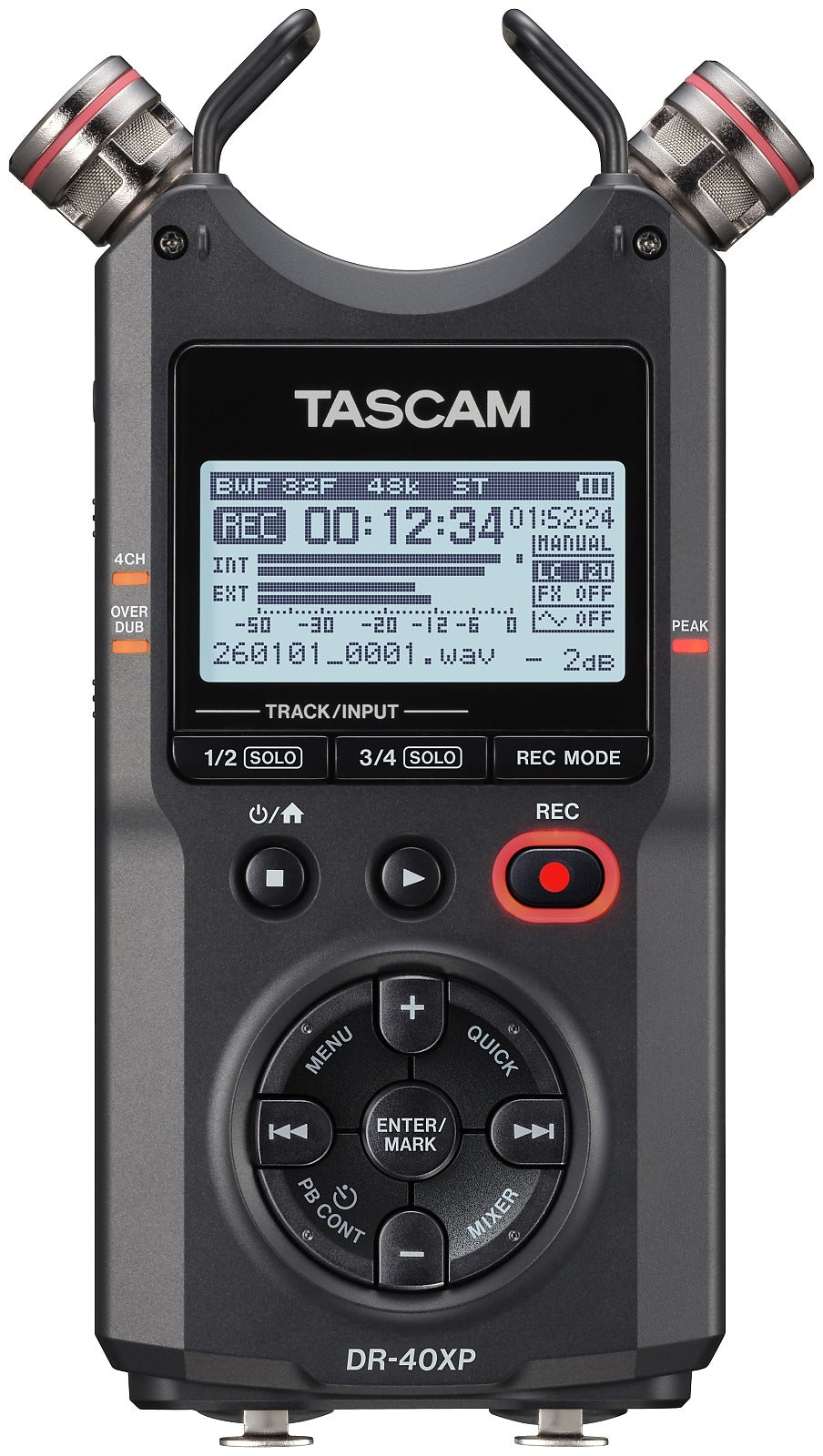

  • Portable recorder with TASCAM screen, record button, and two mic capsules, black body.
DR-40XP Portable Four-Track Digital Audio Recorder and USB Audio Interface

DR-40XP Portable Four-Track Digital Audio Recorder and USB Audio Interface

TASCAM
Dhs. 1,059.00 Dhs. 1,299.00
Taxes included. Shipping calculated at checkout.
Browse all Collections

4-Track / 32-Bit Float Mobile Recording
Professional Performance.
Always on Hand.

The DR-40XP is your go-to 4-track field recorder – built for musicians, videographers, and anyone who wants to capture brilliant audio on the move with total reliability. It combines adjustable stereo microphones with low-noise HDDA mic preamps, plus XLR/TRS inputs with phantom power, so you’re ready for almost any recording setup.
With 32-bit float recording at sampling rates up to 96 kHz, you get clean, distortion-free audio even in challenging environments. Add in long battery life and a USB-C audio interface option, and it’s a solid choice for both recording in the field and working in the studio.

Specifications
General
Recording media
microSD, microSDHC, microSDXC (up to 512 GB)
Recording/playback formats
WAV/BWF
Sampling rate: 44.1 kHz, 48 kHz, 96 kHz
Quantisation bit depth: 16-bit, 24-bit, 32-bit float
MP3
Sampling rate: 44.1 kHz, 48 kHz
Bit rate: 32/64/96/128/192/256/320 kbit/s
Number of channels/tracks
4 input channels (2 × stereo)
4 recording tracks
Analogue audio inputs
External Mic/Line inputs
XLR/TRS combo connectors
MIC or MIC + PHANTOM selected
Maximum input level
+5 dBu
Minimum input level
–84 dBu
Input impedance
≥2.4 kΩ
Phantom power
24 V, 48 V (XLR connectors only)
LINE selected
Maximum input level
+24 dBu
Nominal input level
+4 dBu (GAIN at minimum)
Input impedance
≥10 kΩ
Analogue audio outputs
Headphones / Line output
3.5-mm stereo mini jack
Maximum output level
0 dBV (10 kΩ load)
Nominal output level
−20 dBV (10 kΩ load)
Maximum output power
20 mW + 20mW (32 Ω load)
Output impedance
2.2 Ω
Recommended headphone impedance
16–600 Ω
Built-in mono loudspeaker
0.3 W
Control input/output
USB port
USB-C connector
Transfer format
USB 2.0 High Speed mass storage class
USB 1.1 Full Speed audio class
USB Audio
Sampling frequency
44.1 kHz, 48 kHz
Quantization bit depth
24 bit
Number of inputs/outputs
2/2 channels
Audio performance
EIN (equivalent input noise, mic preamp)
≤–126 dBu
Frequency response
20 Hz – 20 kHz +0/−1 dB
(EXT MIC IN to PCM data, Fs 44.1 kHz, JEITA)
20 Hz – 22 kHz +0/−1 dB
(EXT MIC IN to PCM data, Fs 48 kHz, JEITA)
20 Hz – 40 kHz +0/−1 dB
(EXT MIC IN to PCM data, Fs 96 kHz, JEITA)
Total harmonic distortion
≤0.008 %
(EXT MIC IN, −5 dBFS input, 20-kHz LPF, JEITA)
Dynamic range
≥112 dB
(EXT MIC IN to PCM data, 20-kHz LPF, A-weighted, JEITA)
JEITA indicates compliance with JEITA CP-2150
Battery operation time
Alkaline battery (Evolta)
20:30
Stereo playback using headphones, WAV, 96 kHz, 32-bit float
18:00
Stereo recording using built-in microphones, WAV, 44.1 kHz, 16-bit
16:30
Stereo recording using built-in microphones, WAV, 44.1 kHz, 32-bit float
16:00
Stereo recording using built-in microphones, MP3, 44.1 kHz, 128 kbit/s
05:00
4-track recording using phantom power (48 V, 2 × 3 mA), headphones, WAV, 96 kHz, 32-bit float
NiMH rechargeable batteries (Eneloop)
16:00
Stereo playback using headphones, WAV, 96 kHz, 32-bit float
16:00
Stereo recording using built-in microphones, WAV, 44.1 kHz, 16-bit
16:00
Stereo recording using built-in microphones, WAV, 44.1 kHz, 32-bit float
13:00
Stereo recording using built-in microphones, MP3, 44.1 kHz, 128 kbit/s
05:00
4-track recording using phantom power (48 V, 2 × 3 mA), headphones, WAV, 96 kHz, 32-bit float
Lithium batteries (Energizer Ultimate Lithium)
30:30
Stereo playback using headphones, WAV, 96 kHz, 32-bit float
29:30
Stereo recording using built-in microphones, WAV, 44.1 kHz, 16-bit
25:30
Stereo recording using built-in microphones, WAV, 44.1 kHz, 32-bit float
24:30
Stereo recording using built-in microphones, MP3, 44.1 kHz, 128 kbit/s
10:00
4-track recording using phantom power (48 V, 2 × 3 mA), headphones, WAV, 96 kHz, 32-bit float
Power supply and other specifications
Power requirements
3 AA batteries (alkaline, NiMH, or lithium)
USB bus power from a computer (5 V, 0.5 A)
AC adapter (Tascam PS-P520U, sold separately)
Power consumption
1.7 W (maximum)
Current draw
0.34 A (maximum)
Dimensions (W × H × D)
70 mm × 155 mm × 35 mm (mics folded in)
90 mm × 155 mm × 35 mm (mics folded out)
Weight
213 g (without batteries)
282 g (with batteries)
Permissible operating temperature range
0–40 °C
