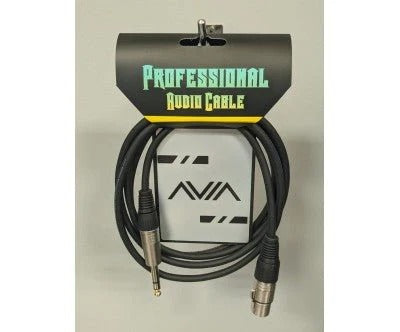

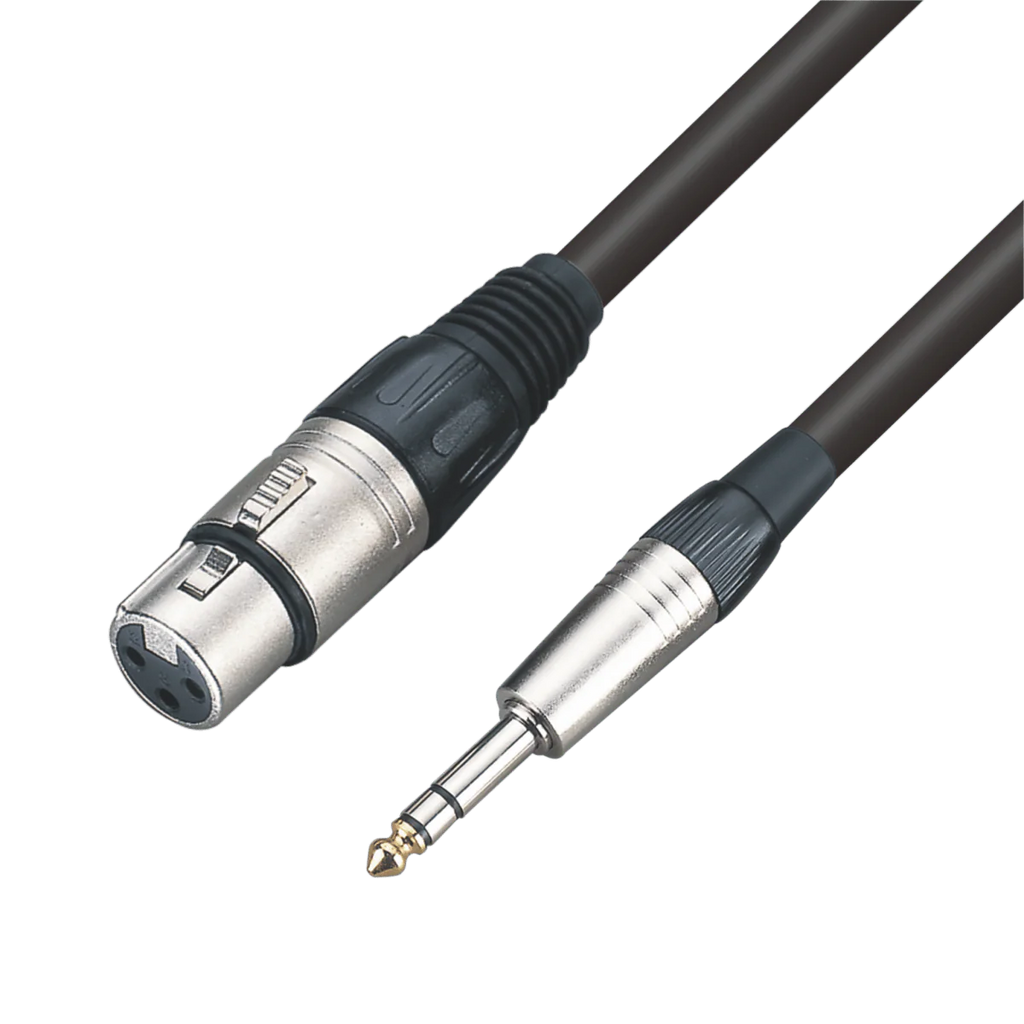

AVIA audio cable with TRS male to XLR female connectors, black cable and metal ends

AVIA Audio Cables - TRS Male to XLR Female Cable

2M
Dhs. 59.00
Skip to product information
AVIA audio cable with TRS male to XLR female connectors, black cable and metal ends
  • AVIA audio cable with TRS male to XLR female connectors, black cable and metal ends
  • AVIA professional audio cable set, bundled black TRS-to-XLR leads with metal connectors
AVIA Audio Cables - TRS Male to XLR Female Cable

AVIA Audio Cables - TRS Male to XLR Female Cable

AVIA
Dhs. 59.00
Taxes included. Shipping calculated at checkout.
Browse all Collections
Lenght

TRS MALE TO XLR FEMALE

  • Fine stranded wire for high-quality signal transmission
  • Very robust, with a thick soft PVC jacket
  • Good shielding provided by dense copper spiral shielding
  • Highly flexible
Technical Data
Jacket, diameter
PVC 6.0 mm
AWG
24
No. of inner conductors
2 x 0.22 mm²
Copper strand per conductor
28 x 0.10 mm
Conductor insulation
PE 1.40 mm
Shielding
copper spiral shielding
with 80 x 0.10 mm
Shielding factor
95 %
Temperature range
min. -20 °C
Temperature range
max. 70 °C
Packaging
100/300 m roll
Electrical Data
Capac. cond./cond. per 1 m
58 pF
Capac. cond./shield. per 1 m
115 pF
Cond. resistance per 1 km
53 Ω
Shield. resistance per 1 km
25 Ω
Insulation resist. per 1 km
> 1 GΩ
Surge impedance
approx.100 Ω

Connectors



FEATURES XLR FEMALE
  • Classic and simple design
  • Heavy duty Zinc alloy shell and PA 30% GR bushing
  • Special cage-type female contact increases conductivity
TECHNICAL DATA
Shell
Zinc alloy diecast
Insert
PA66 30% GR
Contacts
Bronze




FEATURES: 6.3mm stereo plug
  • Ergonomic heavy-duty design with Zinc alloy shell and PA 30% GR bushing
    • Slim 1/4” plug for ease of use
    • Additional rubber sleeve provides excellent cable protection
    • Special strain-relief clamp for easy tightening of the cable without a screw
  TECHNICAL DATA:
Shell
Zinc alloy diecast
Insulation
PA66 30%GR
Contacts
Brass
Contacts plating
Nickel
Bushing
PA 30% GR
