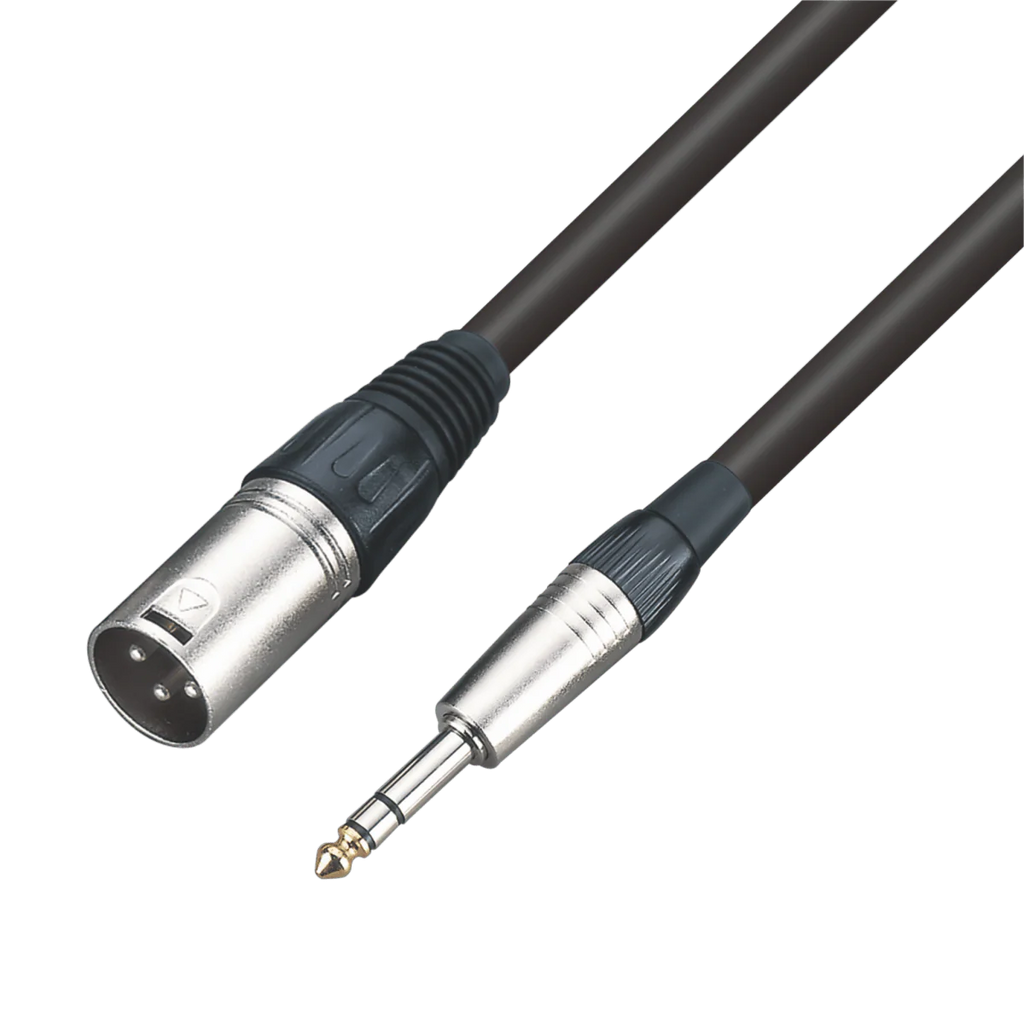

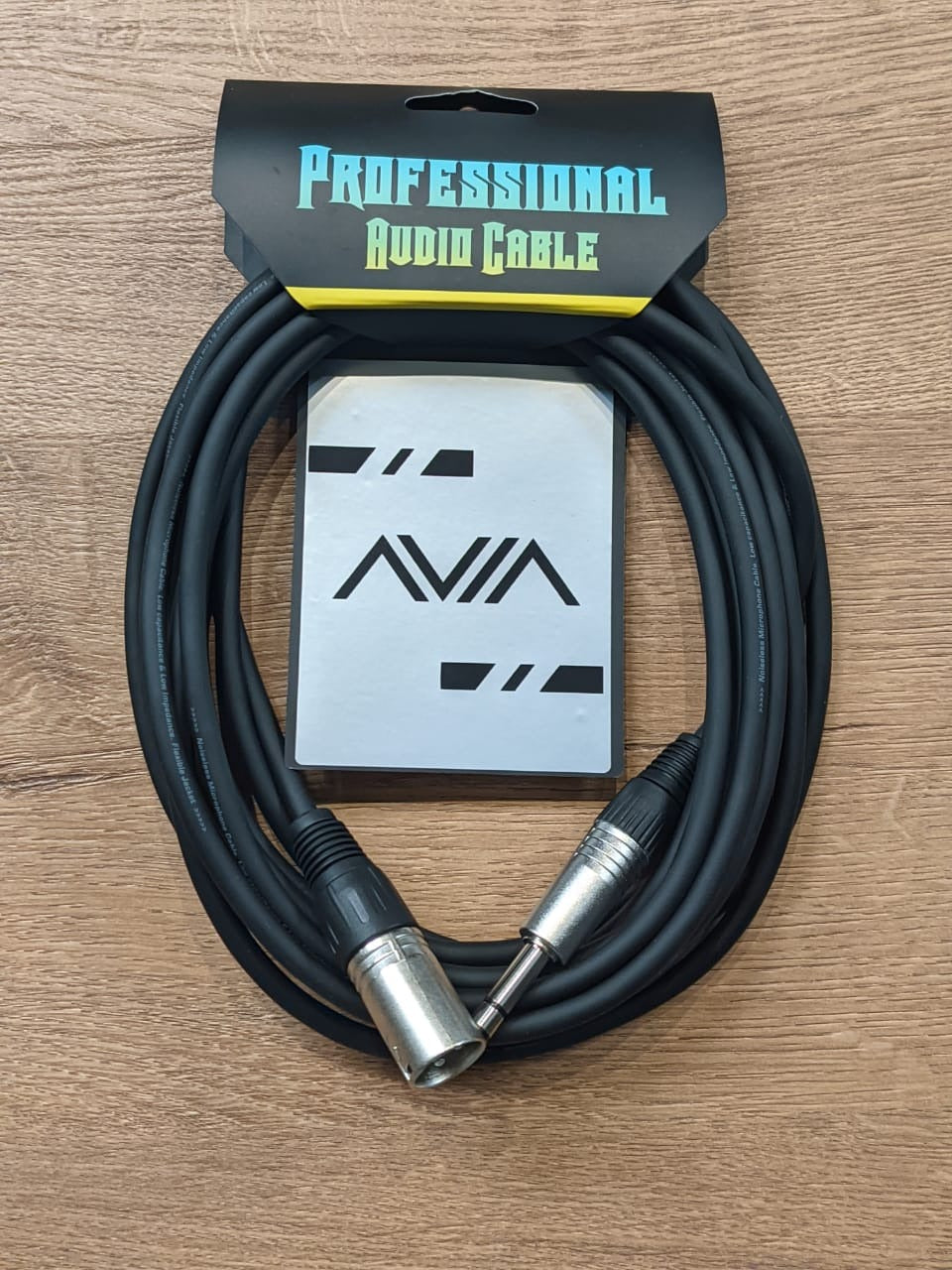

AVIA Audio Cables - TRS Male TO XLR Male Cable

Dhs. 59.00

AVIA Audio Cables - TRS Male TO XLR Male Cable

AVIA

Dhs. 59.00

Taxes included. Shipping calculated at checkout.

Browse all Collections

TRS MALE TO XLR MALE

Fine stranded wire for high-quality signal transmission
Very robust, with a thick soft PVC jacket
Good shielding provided by dense copper spiral shielding
Highly flexible

Technical Data
Jacket, diameter	PVC 6.0 mm
AWG	24
No. of inner conductors	2 x 0.22 mm²
Copper strand per conductor	28 x 0.10 mm
Conductor insulation	PE 1.40 mm
Shielding	copper spiral shielding with 80 x 0.10 mm
Shielding factor	95 %
Temperature range	min. -20 °C
Temperature range	max. 70 °C
Packaging	100/300 m roll

Electrical Data
Capac. cond./cond. per 1 m	58 pF
Capac. cond./shield. per 1 m	115 pF
Cond. resistance per 1 km	53 Ω
Shield. resistance per 1 km	25 Ω
Insulation resist. per 1 km	> 1 GΩ
Surge impedance	approx.100 Ω

Connectors

FEATURES XLR MALE

Classic and simple design
Heavy-duty zinc alloy shell and PA 30% GR bushing
Without locking, the window” makes the housing stronger and increases its durability.
Special contacts pin with gear, designed to avoid moving

TECHNICAL DATA
Shell	Zinc alloy diecast
Insert	PA66 30% GR
Contacts	Brass
Contacts plating	Tin
Strain-relief clamp	POM
Bushing	PA 30% GR

FEATURES: 6.3mm stereo plug

Ergonomic heavy-duty design with Zinc alloy shell and PA 30% GR bushing

• Slim 1/4” plug for ease of use

• Additional rubber sleeve provides excellent cable protection

• Special strain-relief clamp for easy tightening of the cable without a screw

TECHNICAL DATA:
Shell	Zinc alloy diecast
Insulation	PA66 30%GR
Contacts	Brass
Contacts plating	Nickel
Bushing	PA 30% GR

Returns must be requested within 7 days of purchase, and items must be unused, in original packaging with all accessories and documents, subject to inspection, with change of mind returns less a 3.5 percent fee and non refundable shipping.

Delivery times vary by location. Orders are usually delivered within 2 to 4 working days after order confirmation, excluding holidays.
